Foley 673 Accu-Pro AT Bedknife Grinder - AUTOMATIC

Model:
Foley

Foley 673 Accu-Pro AT Bedknife Grinder - AUTOMATIC

Model:
Foley

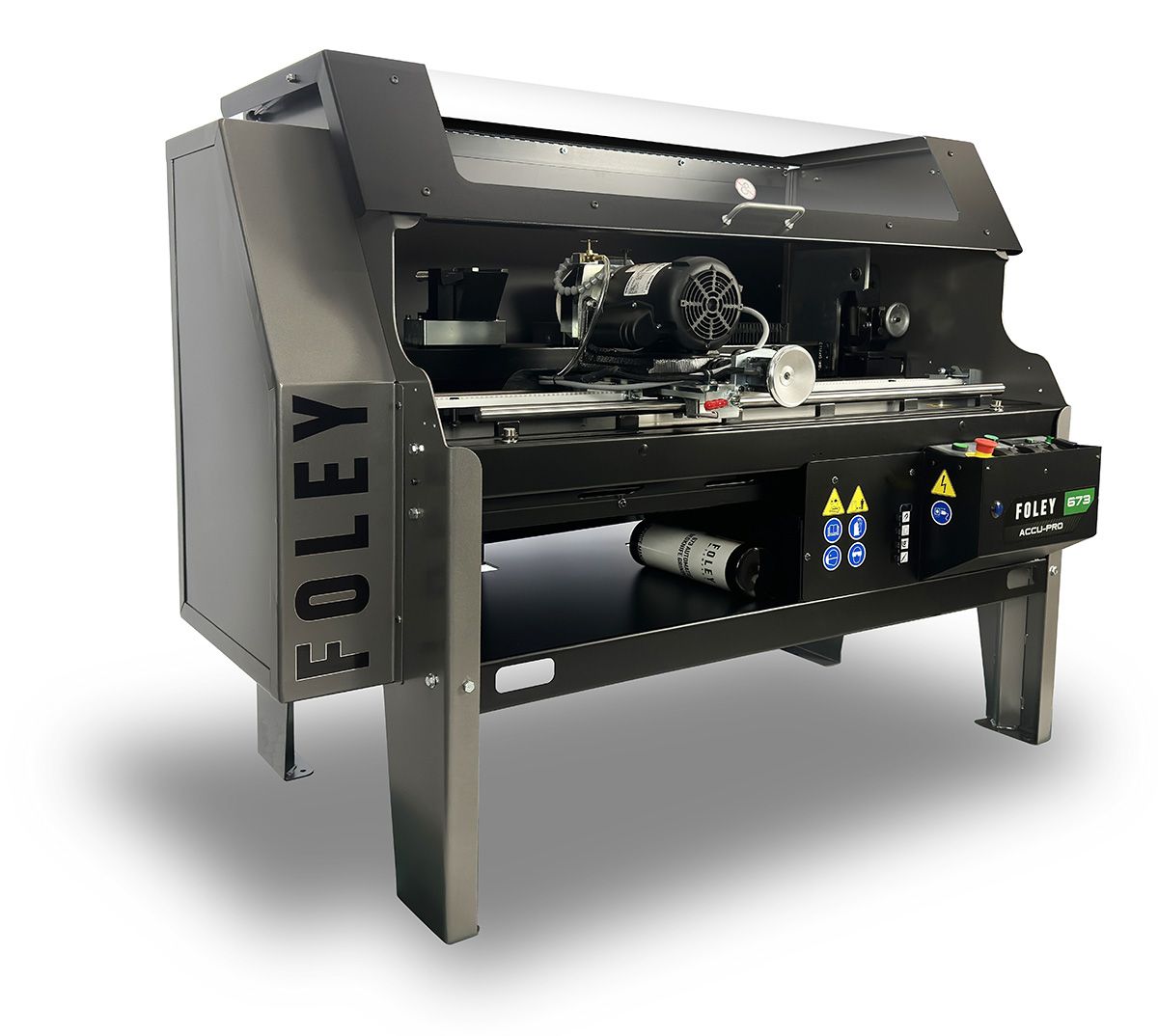

The cutting-edge 673 ACCU-Pro with its revolutionary Bedknife Mounting System. Say goodbye to complicated set-up processes as our powerful electromagnets securely hold the bed bar in place, making set-up a breeze. No additional tooling is required, so you can grind any bed bar arrangement effortlessly.

  • Electro Magnet Mounting System
  • Adjustable Flood coolant
  • Quick retractable Setup Gauge
  • Powered, Fixed Stop Grind Angle
  • Integrated Diamond Dresser
  • Height Adjustable Grinding head
  • Variable Speed Belt Drive Traverse System
  • Automatic Mode – with Powered Infeed

Optional Equipment

  • Borazon Wheel
  • Bellows Kit
  • Flood Coolant Additive



Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Talk to a rep Find a Store

Videos

  • Product Overview
    Foley Model 672/673 Bedknife Grinder
    Play

    Foley Model 672/673 Bedknife Grinder

    Demonstration video for the Foley 672 Model Bedknife Grinder
  • Foley Grinders
    Play

    Foley Grinders

    Every good Superintendent and Equipment Manager knows the importance of keeping cutting reels sharp and within OEM Spec for optimal turf grass maintenance. Foley gives...
  • Foley Erin Hills Case Study
    Play

    Foley Erin Hills Case Study

    Reel grinding is an important part in keeping turf healthy. The team at Erin Hills Golf Course tell us why they rely on grinders from...

Features

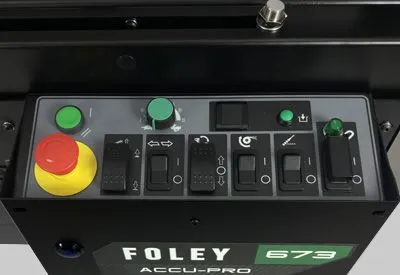

  • Automated In-Feed

    This control allows you to push a button and walk away as the 673 automatically in-feeds, traverses, and runs one of the pre-set programs.

  • Flood Coolant & Diamond Wheel Dresser

    Controls dust, allows fast grinding time by controlling the bedknife temperature during the grind, and aids in producing a high quality surface finish. Allows the operator to dress the grinding wheel. The permanently attached dresser stores easily out of the way during grinding and requires minimal adjustment for dressing.

  • Powered Motion

    Of the tooling bar and mounting system simplifies and quickens the change from grinding the front to the top surface.

  • Precision Traverse System

    Is the key to straight bedknives over the life of the machine. Heat-treated, stress-relieved, and precision-machined, the traverse base utilizes a reliable belt drive system. These features combine to provide the precise foundation for the most accurate grind possible.

  • Fast Angle Setup

    Provides repeatability without recalibration. By setting the Angle Stops once, the 672/673 can grind the same angle over and over. This is the market’s fastest method of setting the desired angle.

  • Bed Bar Mounting System

    Allows the bed bar assembly to remain straight and stable throughout the grinding process without inducing stress.

  • Alignment Gauge

    Simplifies and virtually eliminates set-up time. The forward and upright position is used for alignment of the bedknife. After alignment, the gauge is stored in an out-of-the-way position.
