Grillo Princess MP3 Rotary Tiller - 83 cm

$2,495 Excl. GST

Princess tillers are reliable, safe and well balanced. The Princess MP3 has two forward gears and reverse,
The 83 cm wide tiller has a tines diameter of 32 cm and consists of 6 stars of tines and side discs. It is possible to remove two or four tiller stars to obtain smaller tilling widths.

  • Adjustable tilling depth
  • Handlebar height and side position adjustable
  • Belt-to-chain transmission
  • Two forward gears and one reverse gear
  • Composed of 6 tine elements with side discs – steel tines are removable & 32 cm in diameter.

Sold through dealers only – click here to find your local stockist.

Product Video

Product Features

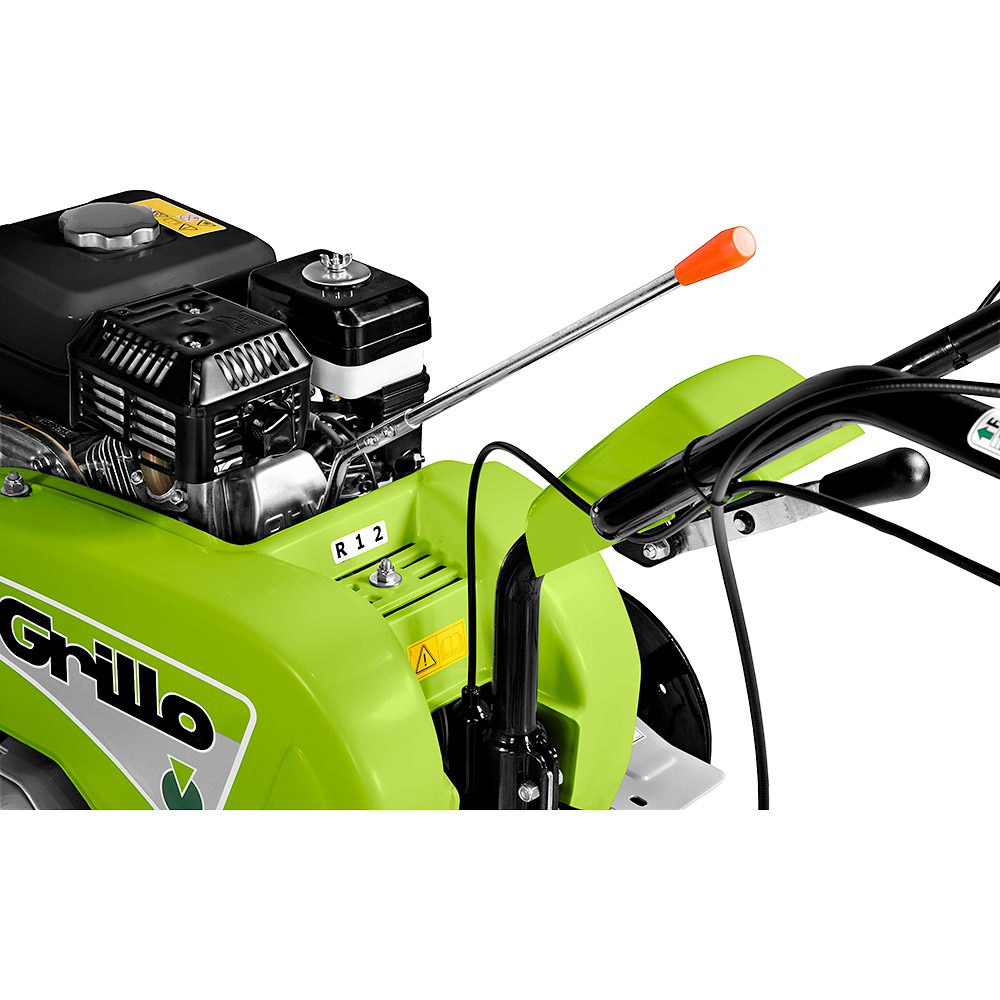

Two-Speed + One Reverse

The two-speed plus reverse gearbox is mechanical with oil-bath gears and the gear lever is always within reach.

Advance Lever

The Grillo Princess MP3 is equipped with an active coupling; the advance lever on the handlebar, when pressed, starts the rotation of the tines. When the lever is released, the tines stop immediately and the engine remains running. Maximum practicality and safety.

Loncin G200FA Petrol Engine

The Grillo Princess is available with the Loncin G200FA petrol engine. It is a latest-generation engine with the best features for agricultural use, including excellent torque at low revs. Sturdy and reliable, it is equipped with a system that reduces the force required for starting.

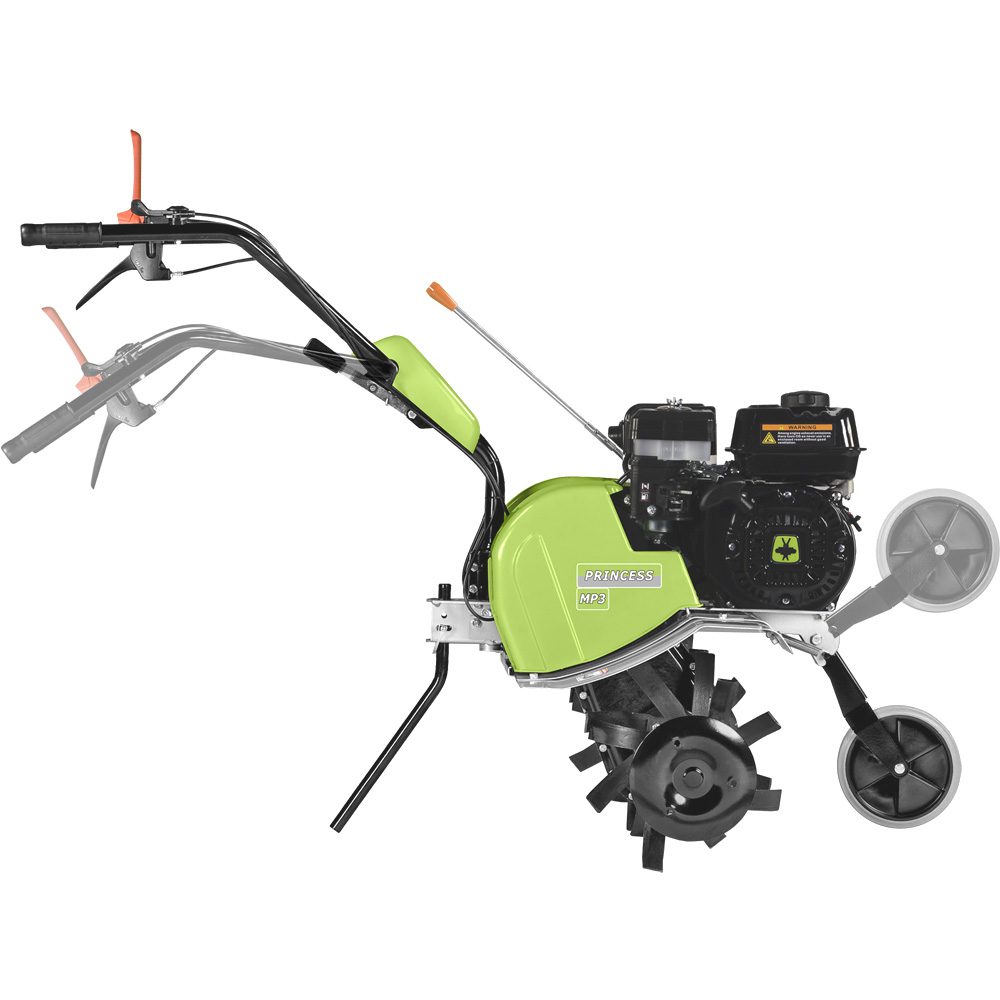

Auto Spring Front Wheel

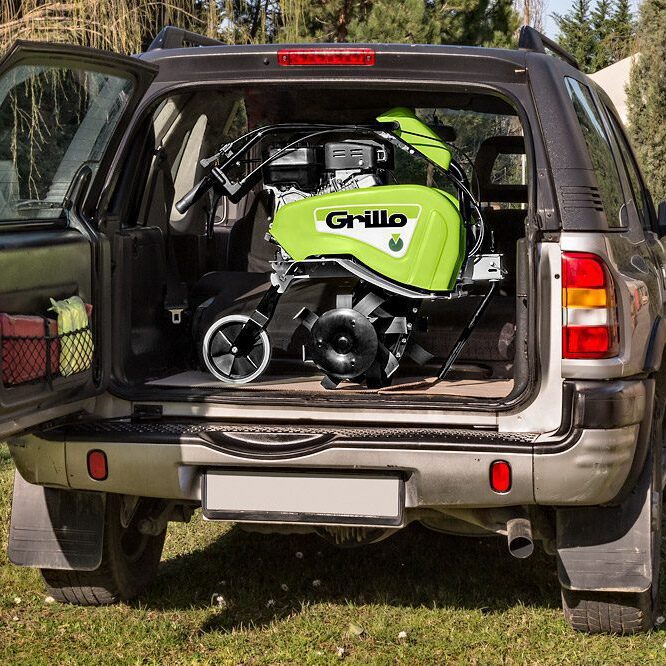

The front wheel, provided as standard, is the best transfer system. It is equipped with a practical spring device that automatically locks it in the working and transfer positions. In addition, the Grillo Princess tiller is easy to transport by car because of its reversible handlebar and compact dimensions.

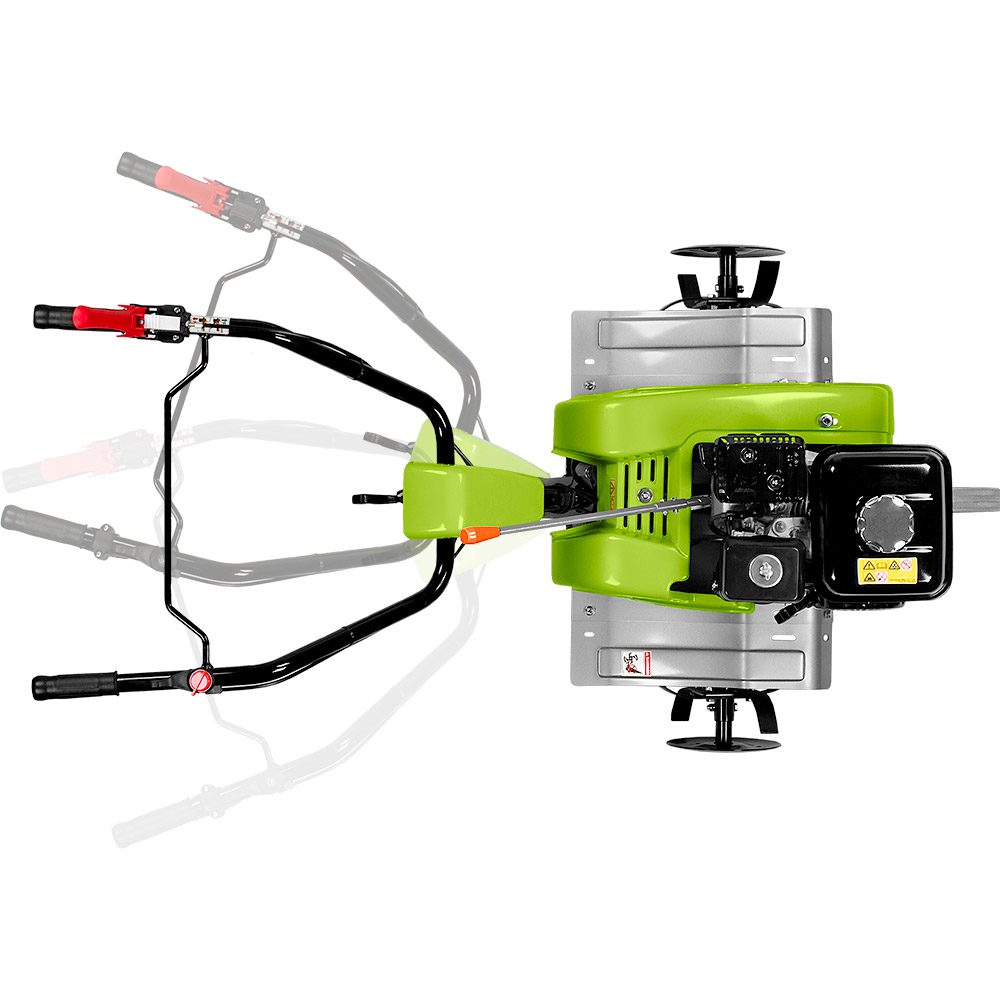

Adjustable Handle Bar

The handlebar is adjustable in height and laterally, with practical levers, without having to unscrew screws or knobs. This makes it easy to work between plants, without stopping to avoid branches or obstacles.

Hardened Steel Tines

The tines made of hardened steel are secured by bolts. The tiller is securely clamped on the tiller axle with M10 bolts.The tiller transmission casing is bolted on for maintenance purposes. The height-adjustable spur can be fixed or oscillating and makes work easy while keeping the machine balanced. In addition, in the oscillating position it acts as a rudder for working around plants.

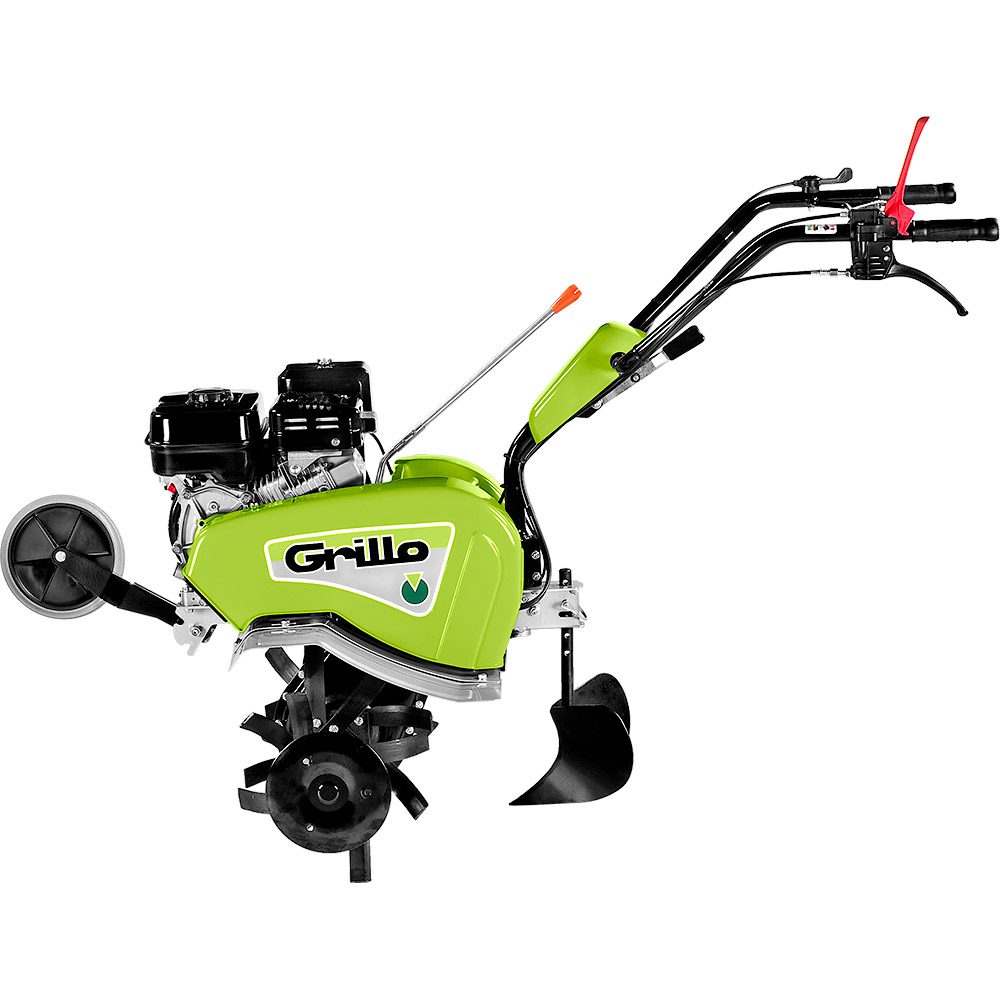

Two Spures

Two spurs are supplied as standard: one for soft soil and one for hard soil. The adjustment of the spur determines the working depth. When the spur is set low, the tines sink deeper into the ground.With the spur set high, the center of gravity shifts forward and the machine tends to advance more quickly.Using the side discs and high spur increases flotation and forward movement.

Ploughing Kit (Not included)

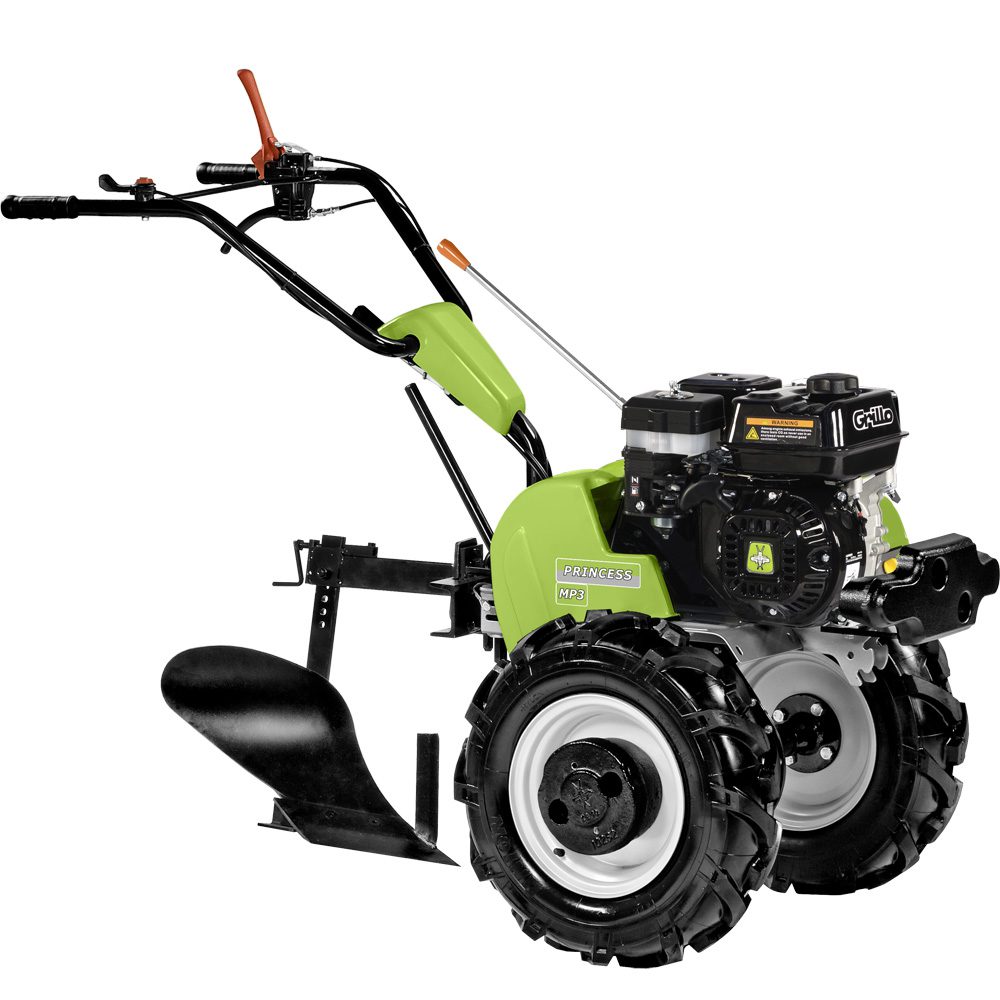

The Grillo Princess MP3 can plough by fitting the optional ploughing kit consisting of a plough, wheels and ballast. (Not included)

Furrower & Side Discs (Not included)

The furrower replaces the spur and allows perfect furrows of the desired depth to be made for seeding or irrigation. Side discs should not be used when tilling hard soil that has never been tilled. In softer soils, side discs become very useful: they help maintain direction, advance and protect nearby crops from tilling.

Easy Clean

Cleaning and maintenance is very simple! You only need to check periodically the engine oil level and clean the filter. The gearbox doesn't need any maintenance. As with all Grillo products, the Princess was designed and built to last plus retain its value over many years. All components, from the simplest to the most complex, are of a high quality standard. Grillo mounts last generation engines! Frame, handlebar, tiller, everything is built by Grillo in Italy, using the best materials and the latest technology to have high, consistent and 100% controlled quality.

Protection Layer

Painting of all Grillo machines is made with a double electrostatic powder coating process. After washing and preparation, a first protective coat is applied then baked in a special oven; this has proven to be the best base for the application of the finish. The second coat consists of powder coating and further baking in an oven at 190°C; this gives the characteristic hardness and shine. All machines are assembled with care in every detail and tested scrupulously by trained personnel. Final inspection includes running the engine in order to check all its functions to guarantee a first class product.

Specifications

Engine Loncin G200FA
Start recoil starter
Supply fuel
Displacement 196 cc, 1 Cylinder
Power 5.5 HP (4.1 kW)
Air cooled
Oil bath air filter
Fuel tank capacity3L
Gearbox2 forward gears + reverse gear. With gears in oil bath
ClutchWith lever control on the handlebar.
Final driveWith pinion and chain
Standard rotary tillerWith 6 tines and lateral discs, working width 83 cm
Hoes system diiameter32 cm
Working width area with side disksAdjustable at 83 and 59 cm
Working depth area without side disks Adjustable at 77, 52 and 30 cm
