| Air Filter | Dry, replaceable primary and safety elements |
| Armrests | Standard |
| Battery | 12V |
| Blade Style/Type | Rotary
Standard Blades: 21.75″ (55.2 cm) long, 2.5″ (6.4 cm) wide, 0.25″ (0.64 cm) thick |
| Cab Unit | No |
| Controls | Tilt steering, ignition switch, throttle switch, foot-operated traction pedal, lockable individual brake pedals, parking brake lock, mow/transport speed selector switch, 3 two-position switches for individual deck lift/lower, counterbalance adjustment, tow valves, cup holder, toolbox, radio holder, fan switch and 12-volt power outlet. |

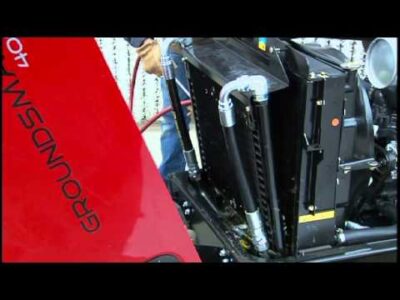

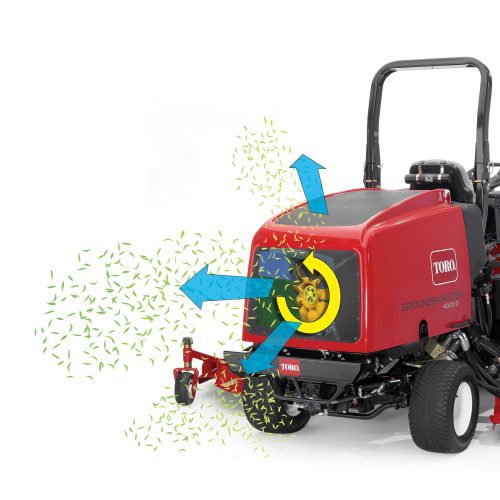

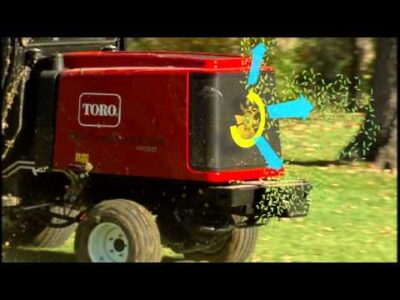

| Cooling System Description | Single pass cooler, 6.3 fins per inch, Smart Cool™ variable speed radiator cooling fan with automatic (based on coolant and oil temps) and manual reversing capabilities. Rear-mount, cross-flow radiator with 6.3 fins per inch, 9 quart (8.5 liter) capacity. |
| Cruise Control | Cruise control standard |
| Cup Holder | Standard |
| Cutting Unit Accessories | Recycler Kit, Mulching Kit, 8 Inch Foam Filled Caster Wheel, Bumper Skid (White) |
| Cutting Unit Lift/Lower | Two position switches for individual deck lift/lower |
| Cutting Unit Type/Configuration | Overall: 132" (335 cm), Front: 62" (157.5 cm), Wings: 42" (106.7 cm), Overlap: 7" (12.8 cm) |
| Deck Caster Wheels | 8 x 3.50-4, 4-ply, smooth, pneumatic, sealed precision ball bearings |

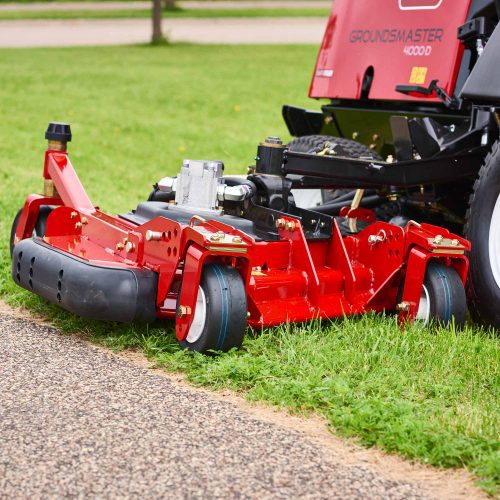

| Deck Construction | Welded 0.100" (25 mm) steel with 7 and 10-gauge steel channel and plate reinforcements, bullnose bumpers |
| Deck Wing Protection | Bi-directional, impact absorption device on each wing deck |
| Drivetrain | Diesel |
| Electrical System | 12-volt, 690 CCA battery, 80 amp alternator. Overload protection with automotive type fuses. |
| Engine Cooling | Liquid Cooled |
| Fuel / Power Source | Diesel / Biodiesel |
| Fuel Capacity | 21 U.S. gal. (79.5 L) |

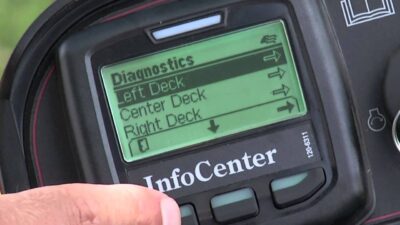

| Gauges/Instrumentation | InfoCenter™: LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates fuel level, coolant temp, intake temperature, low oil pressure, alternator, engine hours, engine rpm, hydraulic oil temperature, voltage |
| Ground Clearance | 6.5" (16.5 cm) |
| Ground Following | 6" anti-scalp cups on each blade, adjustable skids on each deck, 4 anti-scalp rollers on front deck and 1 on each wing |
| Ground Speed - Forward | 0 - 16.2 mph (0 - 26.1 km/h) |
| Ground Speed - Reverse | 0 - 8.1 mph (0 - 13 km/h) |
| Height | 85" (216 cm) with ROPS up 93.9" (237 cm) with cab |
| Height of Cut Range | 1" - 5" (25 mm - 127 mm) in 0.5" (13 mm) increments |
| Hydraulic Fluid Capacity | 8.75 U.S. gal. (33.1 L) |
| Hydraulic Fluid Type | Toro PX™ Extended Life Hydraulic Fluid |
| Implement Drive | Direct mounted hydraulic motor into spindle. Remaining spindle(s) driven by individual B section Kevlar belt. Quick release belt covers. |
| Interlocks | Prevents engine from starting unless traction pedal is in neutral and deck is disengaged. If operator leaves seat while moving or deck is engaged, traction and/or deck stops. Mowing only permitted in low range. Traction not allowed if parking brake engaged and pedal moved out of neutral. Deck transport latches. |
| Lighting | Optional |
| Main Frame/Chassis | All welded formed-steel frame with integral tie-down anchors. |
| Max Slope Angle | Refer to operator's manual. |
| Mowing Rate (Productivity) | Up to 11.1 acres/hr (4.5 hectacres/hr) |
| Mowing Speed | 0 - 8.3 mph (0 - 13.4 km/h) |
| Number of Blades | 7 |
| Oil Capacity | 8 U.S. qt. (7.6 L) |
| Optional Accessories | Road Light Kit, LED Work Lights, Additional Turn Signals, Sunshade, Beacon, Slope Sensor, Two-Post ROPS Extension System, Operator Golf Ball Guard, Horn Kit, 4WD Flow Divider Kit |
| Overall Width | 136" (346 cm) with decks down |
| Parking/Service Brakes | Mechanically actuated, internal wet disc brakes on input to each planetary drive. Individual foot-operated steering brake control left and right wheel. Lock pedals together & latch to engage parking brake. |
| Power Steering | Yes |

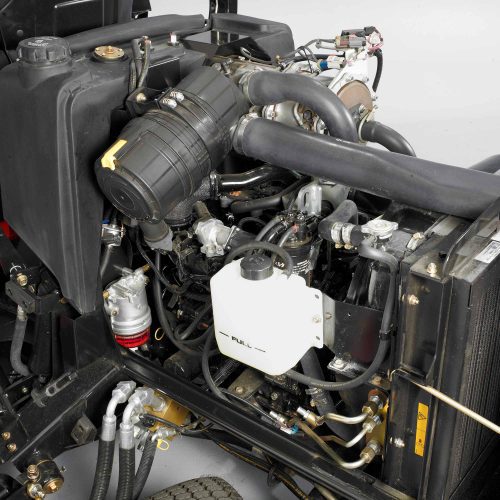

| Power Train (Engine Description) | Yanmar® 4-cylinder, liquid-cooled, turbo-charged diesel. 127 cu. in. (2.1 liter) displacement. Engine rated at 55 hp (41 kW) net and 125 ft.-lbs. (169 Nm) torque at 2,000 rpm. EPA Tier IV Final and Stage V compliant. |
| Product Length | 135" (343 cm) with decks down. |
| Safety/Operator Safety | Two-post foldable ROPS with seat belt, standard |
| Seat | 4-way adjustable seat, right armrest travels with seat and suspension |
| Spindle Assembly | 1.25" (3.17 cm) diameter spindle shafts, 9" (22.9 cm) diameter conical ductile iron housing, and 2 greaseable tapered roller bearings |
| Starting | Key Start |
| Steering System Description | Power steering with dedicated power source. Steering wheel tilts to desired operator position. |
| Tires - Front | 26" x 12" - 12", 6-ply, Tubeless Multi-Trac |
| Tires - Rear | 20" x 10" - 10", 6-ply, Tubeless Multi-Trac |
| Tool Box | Standard |
| Traction Drive | 4WD |
| Traction Drive (System) | Parallel hydrostatic, closed loop system with full-time 4WD. Forward/reverse in low (mow) and high (transport) range with full-time, automatic traction assist (forward only). |
| Transport Width | 71" (180 cm) @ 2" (5 cm) HOC |

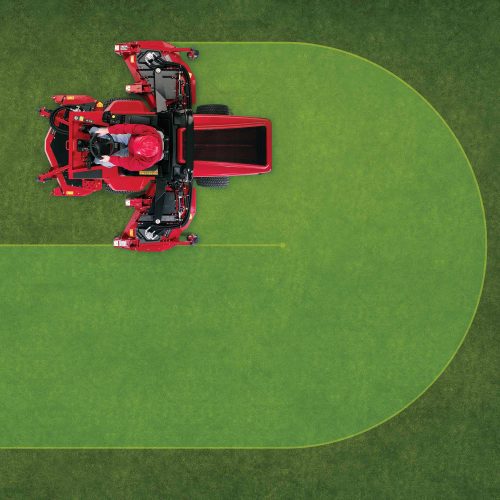

| Turning Circle (Diameter) | Uncut circle: 0" diameter |
| Weight | 4205 lbs. (1907 kg) with full fluids |
| Wheelbase | 55.5" (140 cm) |
| Width of Cut | 132" (335 cm) |
