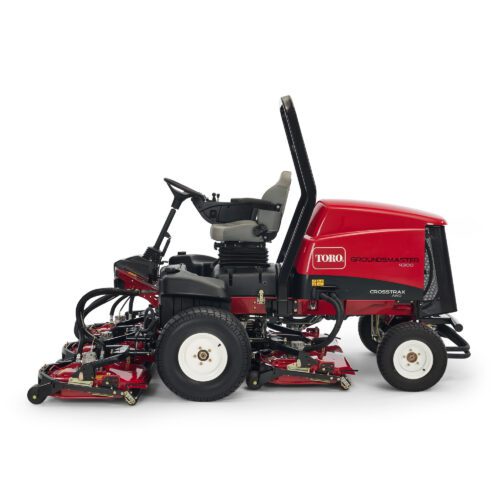

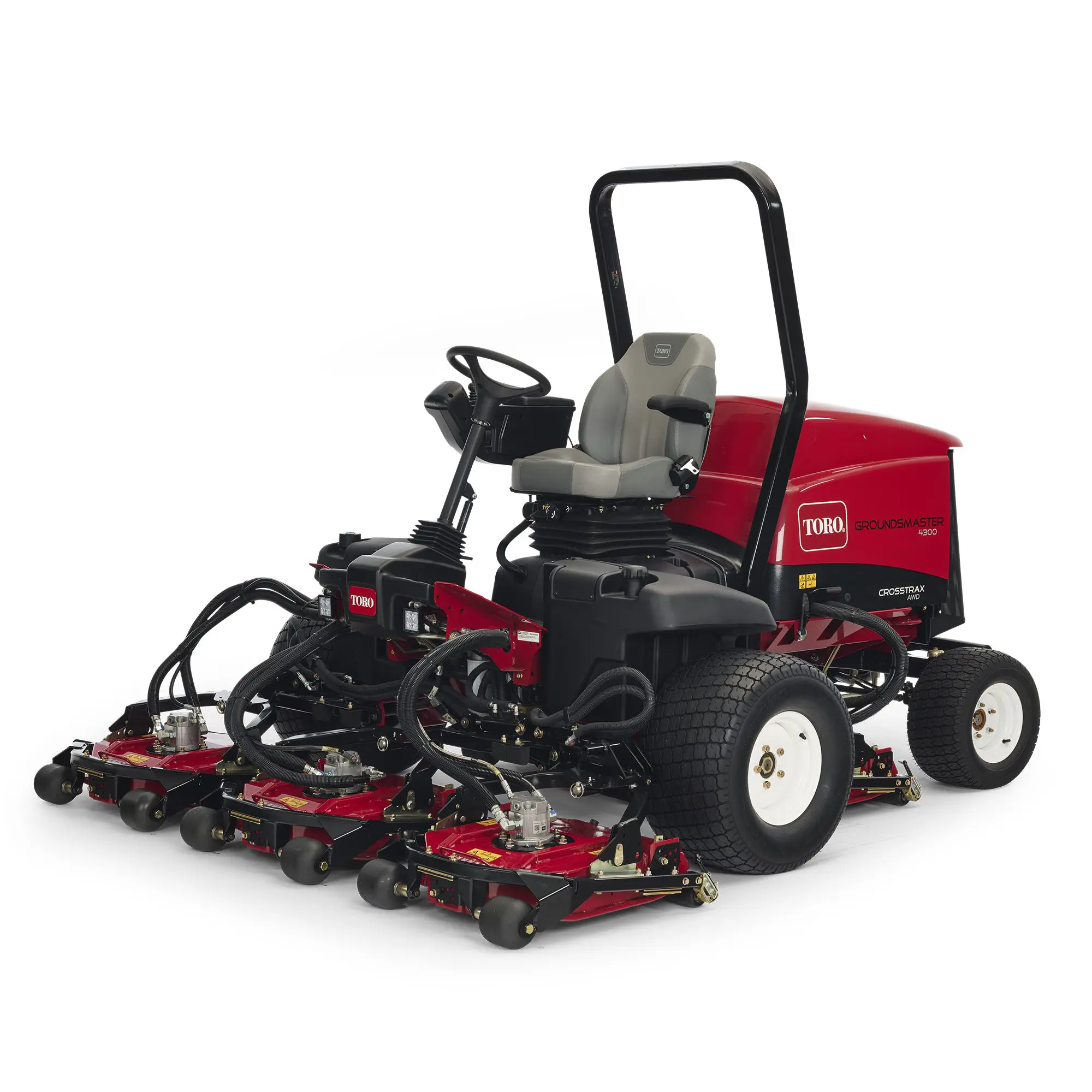

| Air Filter | Dry, replaceable primary and optional safety element.
|
| Armrests | Standard
|
| Battery | 12V
|
| Blade Style/Type | Rotary |
| Blade Type (Description) | 22” (55.9 cm) long, 2.5” (6.4 cm) wide, 0.25” (0.64 cm) thick combination blades.
|
| Cab Unit | N/A
|

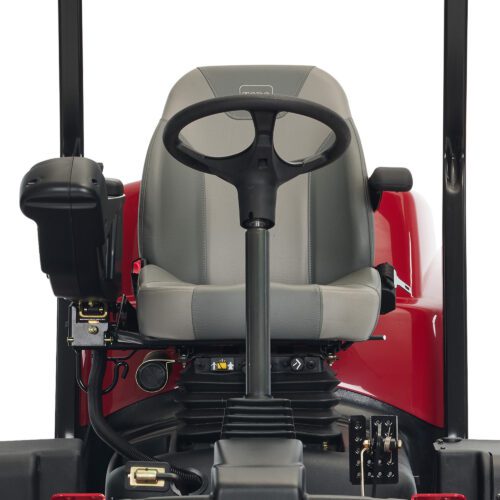

| Controls | Single foot-operated traction pedal. Hand-operated key ignition switch, cutting unit raise/lower switch, cutting unit engage switch, parking brake switch, cruise control switch, and headlight switch all positioned on right hand pivoting control console.
|
| Cooling System Description | Rear-mount, cross-flow 7-row radiator with 6.3 fins per inch, 5.5 quart (5.2 liter) capacity.
|
| Cup Holder | Standard
|
| Cutting Unit Accessories | Leaf Mulching Kit, Combination Blade, Angle Sail Blade, Atomic Mulching Blade, Rear Roller Scraper Kit, Sectional Rear Roller, 22” Rotary Replacement Cutting Unit
|
| Cutting Unit Lift/Lower | Joystick control for deck raise and lower.
|

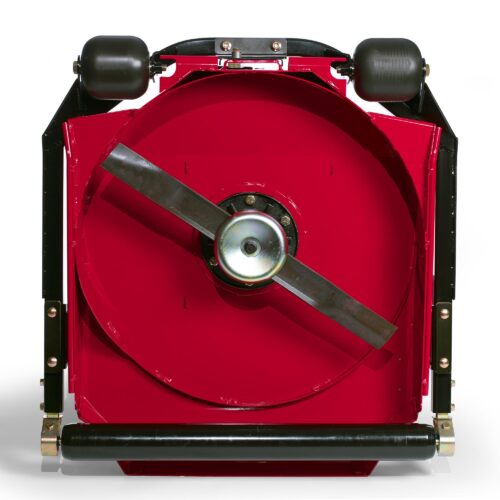

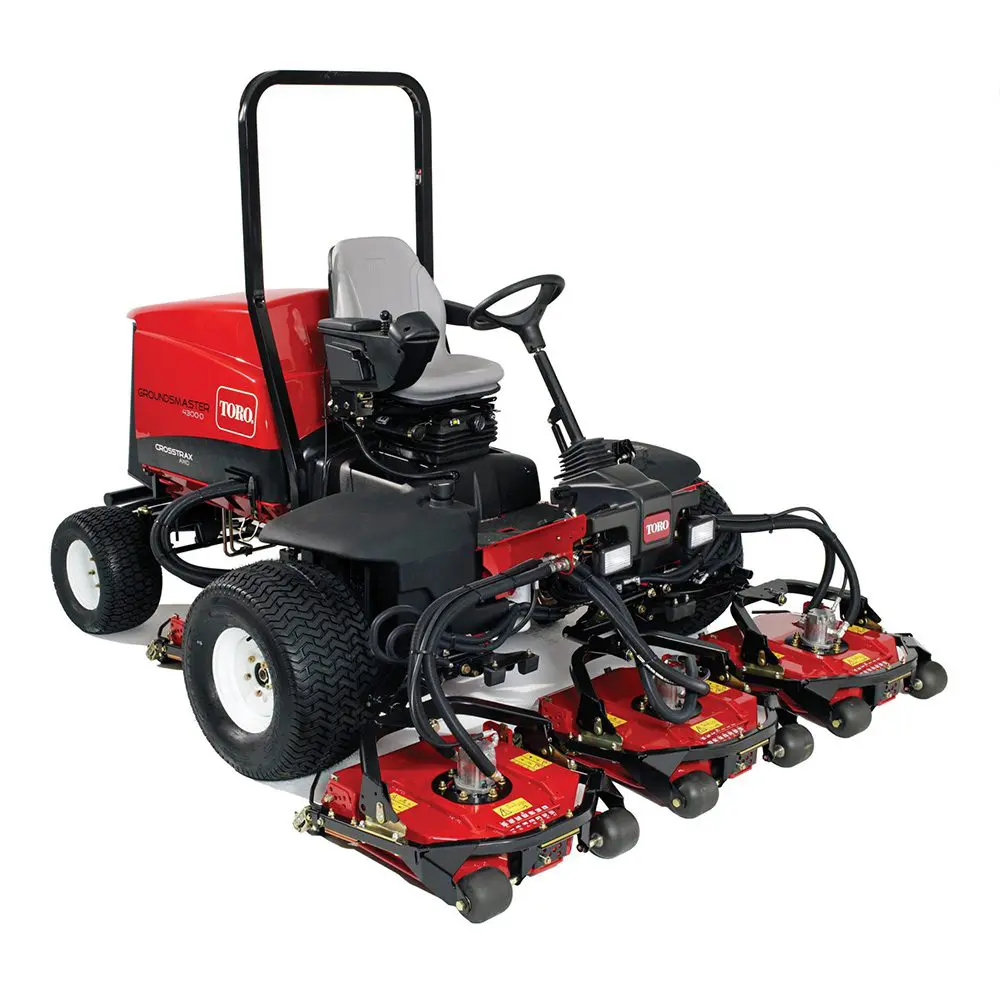

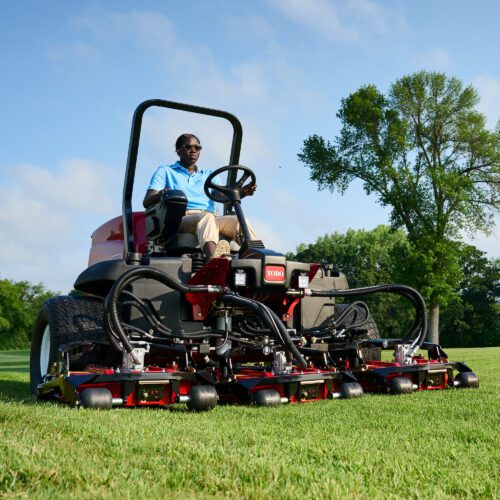

| Cutting Unit Type/Configuration | Five Contour™ Plus 22” (55.9 cm), rear-discharge rotary cutting units with rear roller on each deck. 90” (229 cm), overlap 5” (12.7 cm), overhang 1” (2.5 cm)
|
| Deck Construction | Cutting chamber is 10-gauge steel constructed chambers with 12-gauge welded reinforcements. Spindle support is 3/16” (0.48 cm) high-strength steel and 10-gauge exterior channels. Cutting unit frame is welded 1.5” (3.8 cm) square x 0.25” (0.6 cm) wall tube with 7-gauge side supports. Spindle support 3/16” (0.48 cm) high-strength steel and 10-gauge exterior channels.
|
| Drivetrain | Diesel
|
| Electrical System | 12-volt battery with 540 CCA, 55 amp alternator. Overload protection with automotive-type fuses.
|
| Engine Cooling | Liquid Cooled
|
| Fuel / Power Source | Diesel / Biodiesel
|
| Fuel Capacity | 13.5 U.S. gal. (51.1 L)
|
| Gauges/Instrumentation | InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates fuel level, coolant temp, low oil pressure, alternator, engine hours, engine rpm, voltage, counterbalance settings, glow indicator, lift/lower indicator.
|
| Ground Clearance | 5" (12.7 cm)
|
| Ground Following | 6” (15.3 cm) anti-scalp cups on each blade.
|
| Ground Speed - Forward | 0 - 10 mph (0 - 16.1 km/h)
|
| Ground Speed - Reverse | 0 - 4 mph (0 - 6.4 km/h)
|
| Height | 86" (215 cm) with 2-post ROPS
|
| Height of Cut Range | 0.75” - 4” (1.9 cm - 10.2 cm) in 0.25” (0.6 cm) increments.
|
| Hydraulic Cylinders | Two remote spin-on filters: main system, and traction charge.
|
| Hydraulic Fluid Capacity | 14 U.S. gal. (53 L)
|
| Hydraulic Fluid Type | Toro PX™ Extended Life Hydraulic Fluid
|
| Implement Drive | Hydraulic, direct coupled to spindle.
|
| IntelliDash™ Capable | No |
| Interlocks | Prevents engine from starting unless traction pedal is in neutral and deck is disengaged. If operator leaves seat with deck engaged, decks stop. If operator leaves the seat with the unit out of neutral, engine stops. Mowing only permitted in low range. Engine stops if parking brake engaged and traction pedal not in neutral.
|
| Lighting | Standard |
| Main Frame/Chassis | All welded formed-steel frame with integral tie-down anchors.
|
| Max Slope Angle | Refer to operator's manual.
|
| Mowing Rate (Productivity) | Up to 6.4 acres/hr (2.6 hectacres/hr)
|
| Mowing Speed | 0 - 7 mph (0 - 11.3 km/h)
|
| Number of Blades | 5
|
| Oil Capacity | 5.5 U.S. qt. (5.2 L)
|
| Oil Cooler Description | Double row, single-pass oil cooler that tilts out for cleaning.
|
| Optional Accessories | Air-ride Seat Suspension, Two-post ROPS Extension System, White Sunshade, Red Sunshade, Operator Fan Kit, Diagnostic Display Box, Golf Ball Operator Guard
|
| Overall Width | 96.3" (245 cm) (outside of decks)
|
| Parking/Service Brakes | 8” mechanical drum-type front wheel brakes. Brakes may be actuated for service braking via left foot pedal. Integrated foot pedal lock provides parking brake. Dynamic braking through hydrostatic traction drive system.
|
| Power Steering | Yes |

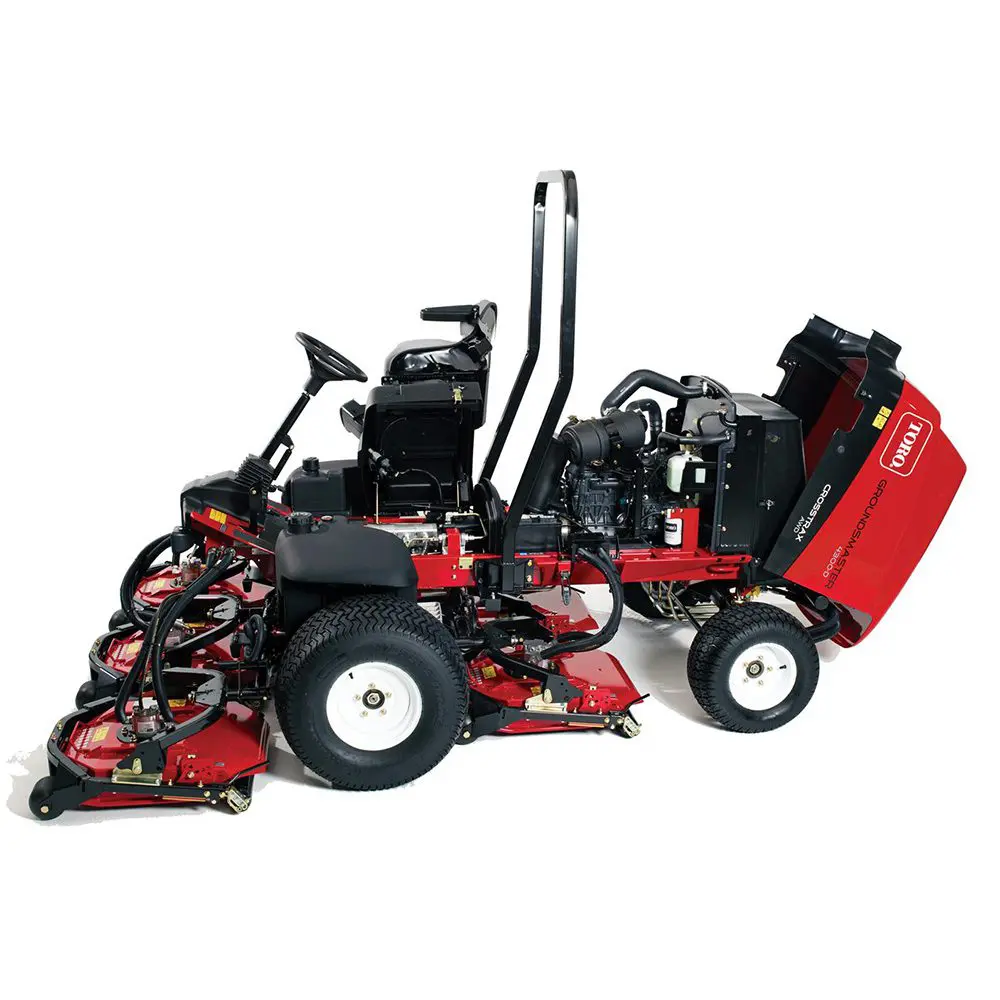

| Power Train (Engine Description) | Yanmar® 3-cylinder, liquid-cooled, turbo-charged diesel, 43.4 hp (32.4 kW), 88.5 ft.-lbs. of torque, 91.4 cu. in. (1.5 liter) displacement. EPA Tier IV Final and Stage V compliant.
|
| Product Length | 126" (320 cm)
|
| Rollers | Per deck: Two 5” (12.7 cm) diameter front rollers with sealed stainless steel bearings, one 3” (7.6 cm) diameter rear roller with greaseable stainless steel bearings.
|
| Safety/Operator Safety | 2-post ROPS and seat belt standard.
|

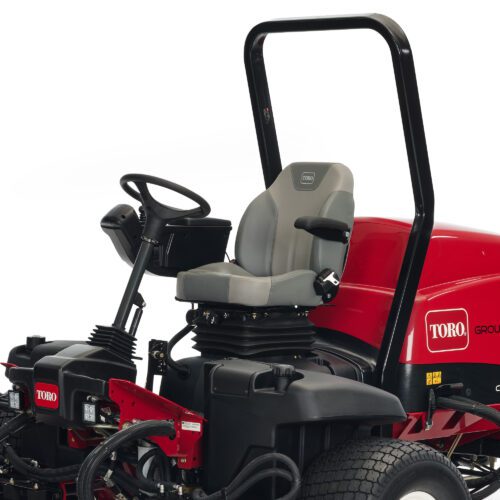

| Seat | Mechanical suspension seat standard with pivoting LH armrest, pivoting RH control arm and retractable seat belt.
|
| Spindle Assembly | Ductile cast iron spindle housing. Dual greaseable tapered roller bearings. 1.25” (3.2 cm) diameter solid cold finished steel spindle shaft. Splined connection between spindle shaft and pulley. Welded blade retainer plus anti-scalp cups.
|
| Starting | Key Start
|
| Steering System Description | Rear wheel, power steering with an independent hydraulic pump circuit.
|
| Tires - Front | 26.5" x 14" - 12", 6-ply
|
| Tires - Rear | 20" x 12" - 10", 6-ply
|
| Tool Box | Standard |
| Traction Drive | 4WD
|
| Traction Drive (System) | Front drive wheels powered by a hydrostatic pump with individual wheel motors. Parallel / Series Hydrostatic, closed loop 4 wheel drive, forward direction only. Variable displacement piston pump with direct displacement control, Standard all-wheel drive with CrossTrax® All-Wheel Drive system, which transfers power from the front wheels to the opposite rear wheels via independent rear wheel motors.
|
| Transport Width | 88.3" (224 cm) (outside of front tires), front track width the same. Rear track width: 54" (137 cm)
|
| Weight | Traction Unit Weight: 3,205 lbs (1454 kg) - with full fluids and 5 cutting units. Cutting Unit Weight: 140 lbs (64 kg) – single cutting unit assembly only.
|
| Wheelbase | 60" (152.4 cm)
|

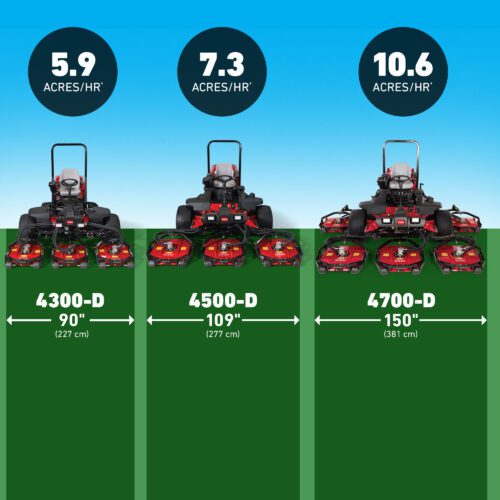

| Width of Cut | 90” (229 cm)
|
