| Air Filter | Heavy-duty, radial seal air cleaner.
|
| Armrests | Standard |
| Battery | 12V |
| Bedknife Adjustment | Dual Precision Adjustment (DPA), bedknife to reel.
|
| Blade Style/Type | Reel |
| Blade Type (Description) | EdgeSeries™ DPA radial reels.
|
| Cab Unit | N/A
|
| Clip Frequency/Backlapping | Manually controlled, variable reel speed for control of clip frequency. Standard on-board backlapping.
|

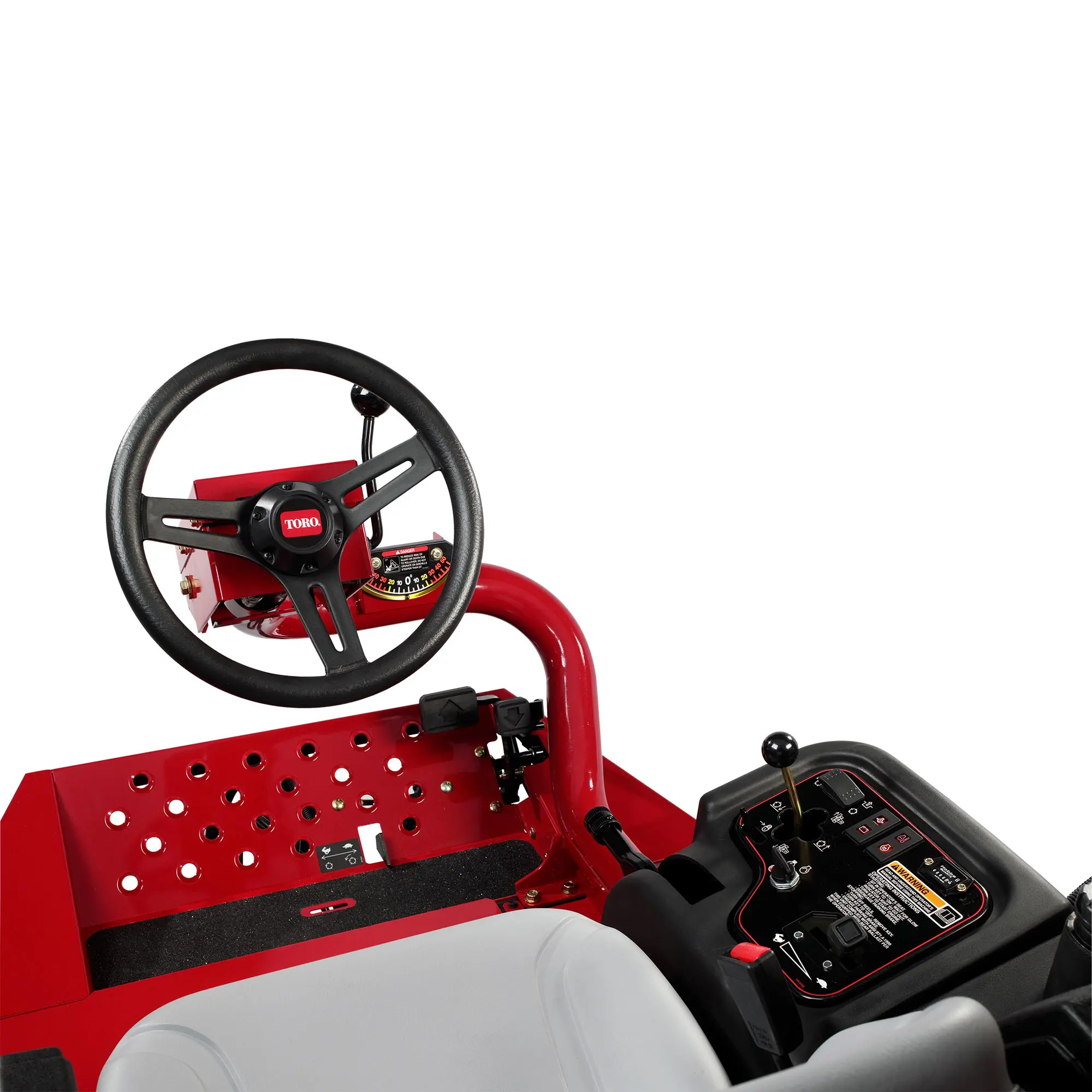

| Controls | Forward and reverse traction control pedals, mow/transport lever, hand activated park brake, ignition key switch, tilt steering wheel lock, PTO switch, throttle, joystick control for cutting unit raise and lower (and for moving cutting units side-to-side on Sidewinder equipped models), cutting unit transport lock, reel speed and backlap control knob.
|
| Cooling System Description | Rear mounted radiator.
|
| Cup Holder | Standard
|
| Cutting Unit Accessories | Rear Roller Brush Kit, Universal Groomer, Broomer, Grass Baskets
|
| Cutting Unit Lift/Lower | Hydraulic - front and rear cutting unit lift/lower are sequenced for uniform starting and ending points.
|
| Cutting Unit Offset | Maximum 15" (38 cm) in 72" (183 cm) width of cut. Maximum 22" (56 cm) in 85" (216 cm) width of cut.
|

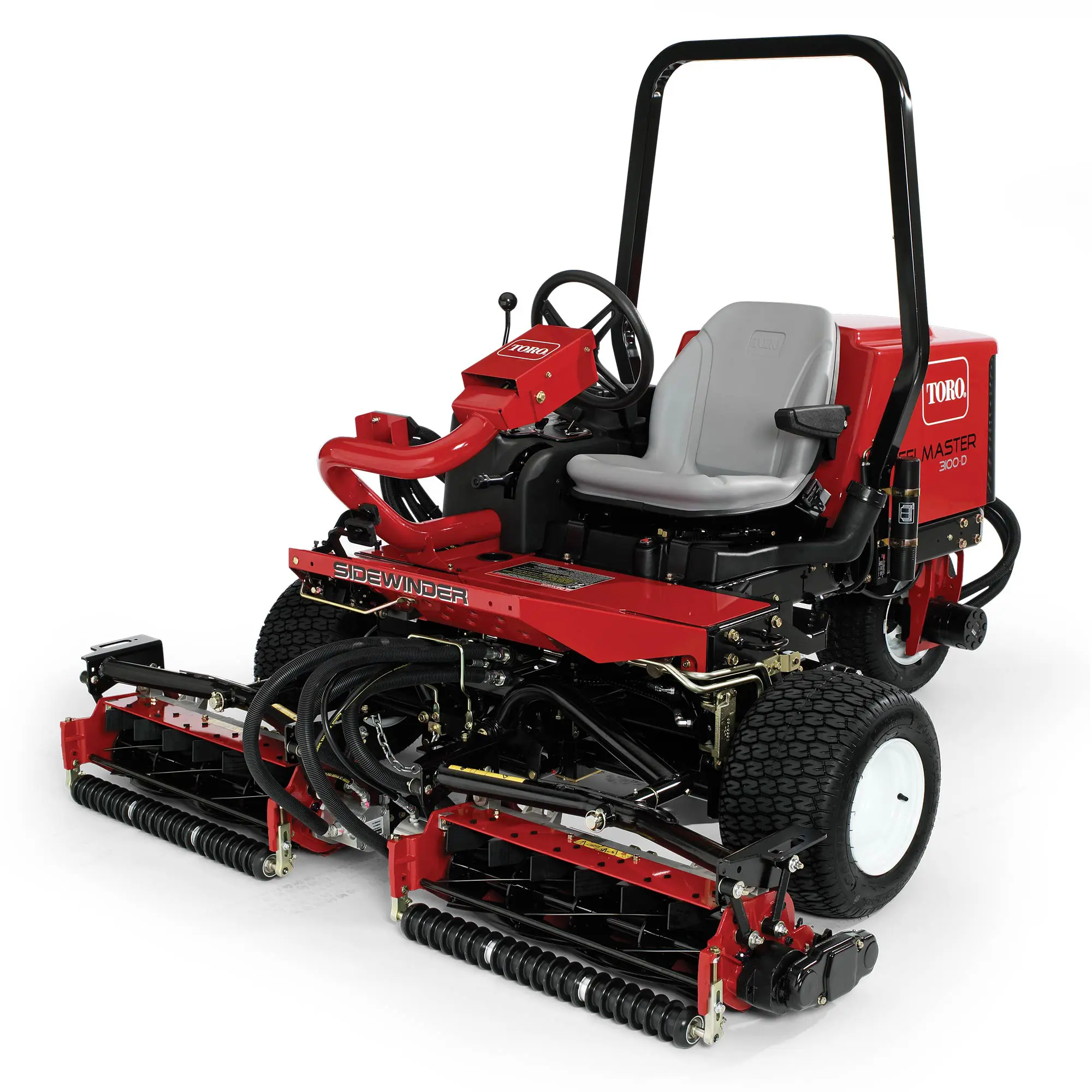

| Cutting Unit Type/Configuration | Three hydraulically-driven, balanced, 7" (17.8 cm) diameter reels. Cutting units interchangeable to all three positions. Operator controlled moveable cutting units travel ±12" (30 cm) left or right from center; total of 24" (61 cm) of infinite variability. 72" (183 cm), or 85" (216 cm) width of cut dependent on cutting unit selection.
|
| Drivetrain | Diesel
|
| Electrical System | 12-volt, 585 cold cranking amps at 0 deg. F (-18 deg. C), 40 amps with regulator/rectifier.
|
| Engine Cooling | Liquid Cooled
|
| Fuel / Power Source | Diesel / Biodiesel
|
| Fuel Capacity | 7.5 U.S. gal. (28 .4 L)
|
| Fuel Filter | Fuel filter with fuel/water separator with visible bowl.
|
| Gauges/Instrumentation | Hour meter, fuel gauge, cluster gauge with glow plug and charge indicator lights. Low engine oil pressure and high coolant temperature warning lights (high temperature safety shut off).
|
| Ground Speed - Forward | 0 - 9 mph (0 - 14 km/h)
|
| Ground Speed - Reverse | 0 - 4 mph (0 - 6.4 km/h)
|
| Height | 76" (193 cm) with ROPS
|
| Height of Cut Range | Floating Position (Standard)
8-Blade: 0.5" - 2.0" (13 mm - 51 mm)
11-Blade: 0.25" - 0.75" (6 mm - 19 mm)
Fixed Position
8-Blade: 1.25" - 2.0" (32 mm - 51 mm) |
| Hydraulic Fluid Capacity | 6 U.S. gal. (22.7 L)
|
| Hydraulic Fluid Type | Toro PX™ Extended Life Hydraulic Fluid
|
| IntelliDash™ Capable | No |
| Interlocks | Traction pedal, operator presence in seat, PTO engage or disengage, and cutting unit mow or transport safety interlock switches.
|
| Lighting | Optional
|
| Main Frame/Chassis | Formed steel, welded steel and steel tubing.
|
| Max Slope Angle | Refer to operator's manual.
|
| Mowing Speed | 0 - 6 mph (0 - 10 km/h)
|
| Number of Blades | 11, 5, 8
|
| Oil Capacity | 3.5 U.S. qt. (3.3 L)
|
| Oil Cooler Description | Pressurized lubrication system with 3.5 U.S. qt. (3.3 L) capacity.
|
| Optional Accessories | Sunshade (with optional operator cooling fan, LED work lights, rotating amber beacon)
|
| Parking/Service Brakes | Hydrostatic service brake, hand-operated parking brake.
|
| Power Steering | Yes |

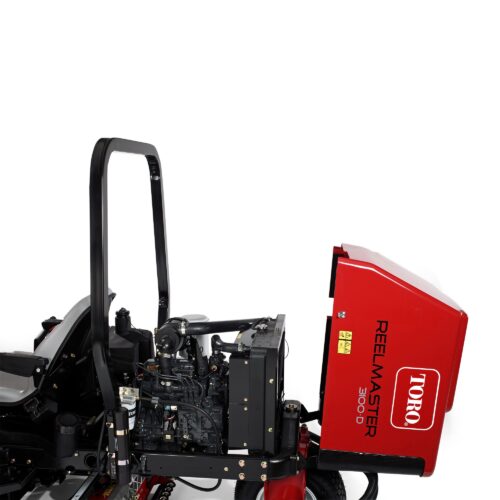

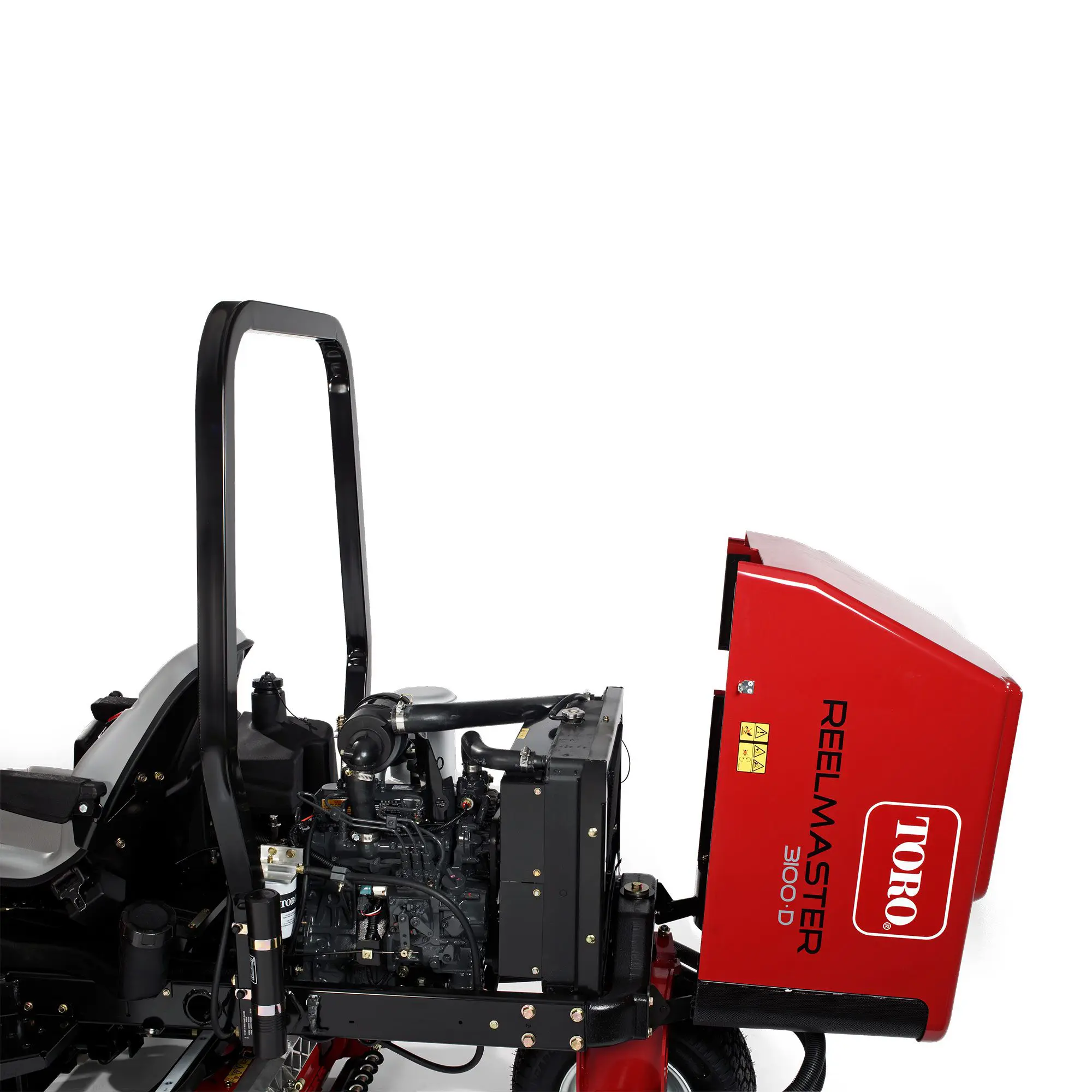

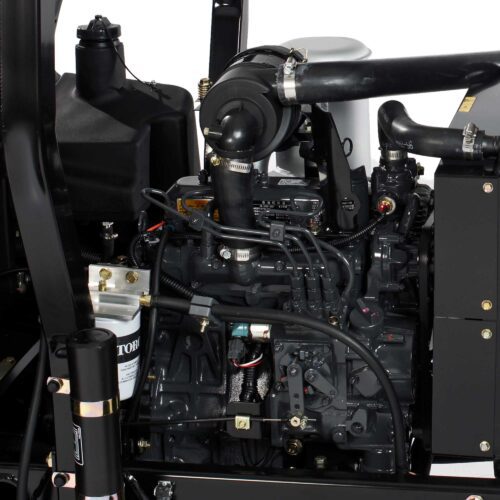

| Power Train (Engine Description) | Kubota® liquid-cooled diesel, 3-cylinder, 21.5 hp (16 kW) net @ 2500 RPM. High idle: 2,600 rpm, Low idle: 1,400 rpm (+/- 50 rpm). 68.5 cu. in. (1123 cm) displacement. Tier 4 and Stage V compliant.
|
| Product Length | 93" (248 cm)
|
| Reel Diameter | 7 in. (17.8cm)
|
| Reel/Cylinder Drive | Hydraulic
|
| Rollers | Full roller standard on rear of cutting unit and plastic front Wiehle roller.
|
| Safety/Operator Safety | Two post ROPS and retractable seat belt standard.
|
| Seat | Two-piece premium commercial two-tone grey vinyl with two arm rests, fore/aft adjustment.
|

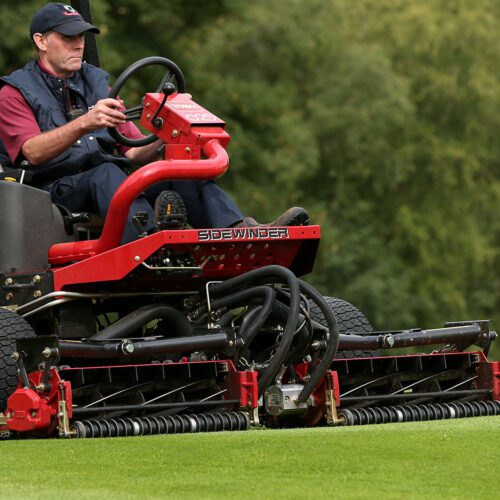

| Sidewinder | Yes |
| Starting | Switch
|
| Steering System Description | Power steering with tilt steering wheel.
|
| Tires - Front | 20" x 12" - 10", 4-ply, Turf Tread
|
| Tires - Rear | 20" x 10" - 10", 4-ply, Turf Tread
|
| Tool Box | Optional |
| Traction Drive | 3WD |
| Traction Drive (System) | Series/Parallel hydraulic traction circuit provides continuous 3-wheel drive, in mow and transport. Hydrostatic traction drive provides infinitely variable speed in forward and reverse.
|
| Transport Width | 80" (203 cm) in 72" (183 cm) WOC, 92" (234 cm) in 85" (216 cm) WOC
|
| Weight | with 27-inch Cutting Units: approx. 1,950 lbs. (885 kg)
|
| Wheelbase | 56" (142 cm)
|
| Width of Cut | 72" (183 cm) or 85" (216 cm)
|
