| Agitator | Three side-mounted jet agitation nozzles for full tank agitation.
|
| Boom Actuators | Heavy-duty hydraulic lift actuators with nitro-steel plated shafts; 1-3/4" (4.4 cm) Bore x 10.06" (25.6 cm) stroke.
|

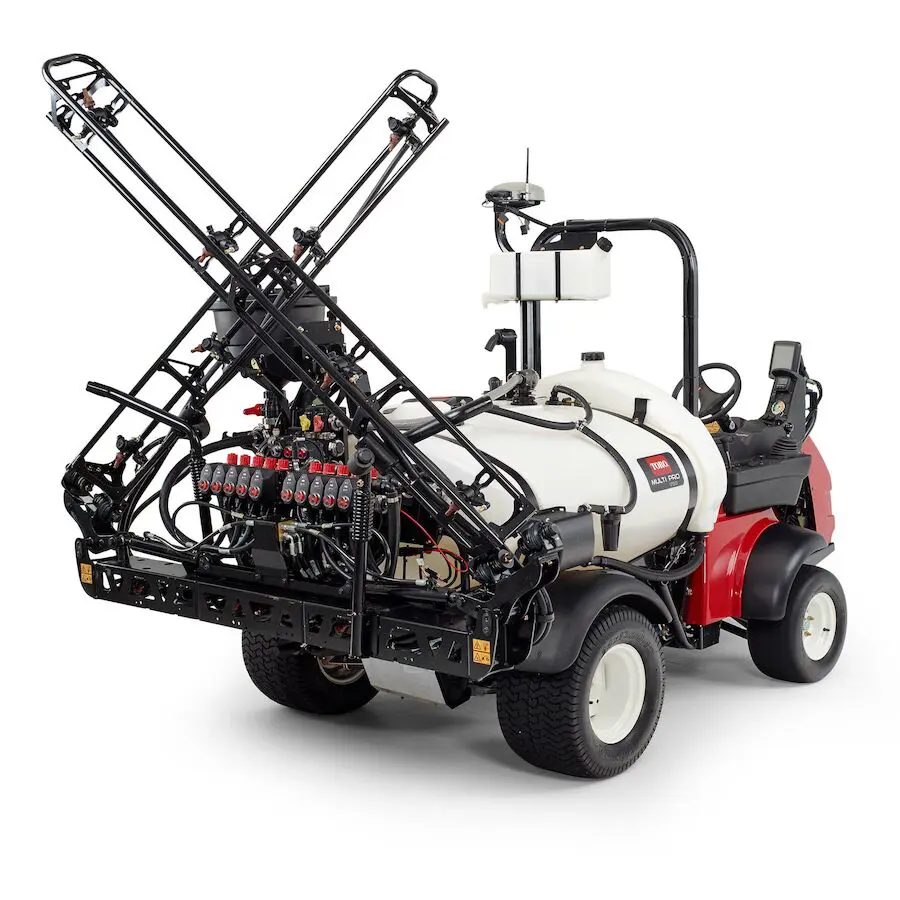

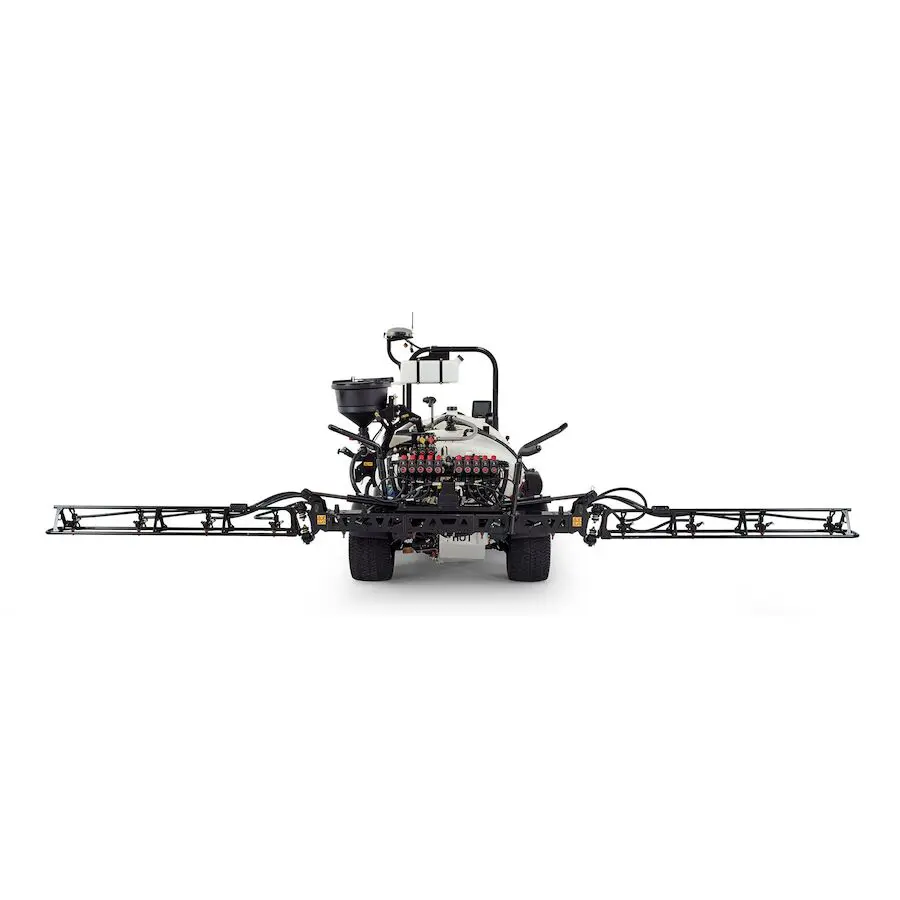

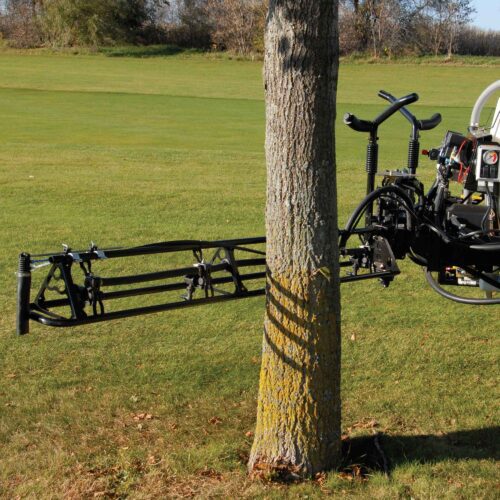

| Boom Assembly | 18.5' (5.6 m) three-section, triangular truss-style open booms, expandable to 20.5' (6.3 m) with optional kit. Eleven nozzle turrets, triple turret-mount, quick-disconnect with diaphragm check valves. Twelve nozzle turrets with optional kit.
|
| Brakes | Four wheel hydraulic disc, 2-piston calipers; Front: 7.5" (19 cm) diameter rotor, Rear: 9.5" (24 cm) diameter rotor.
|
| Cooling System | Air-cooled engine.
|
| Electrical System | 12-volt battery, 300 cold cranking amps at 0° F (-18° C). 12-volt, 60 Amp alternator. Dash mounted ignition switch.
|
| Fuel System | 5 gallon molded Roto-Low Perm tank with 1.5" fill opening, non-vented cap w/tether, mechanical float-type fuel gauge and roll-over valve; carbon vapor canister; mechanical fuel pump
|

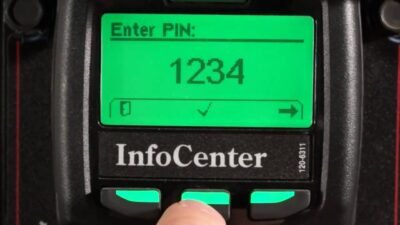

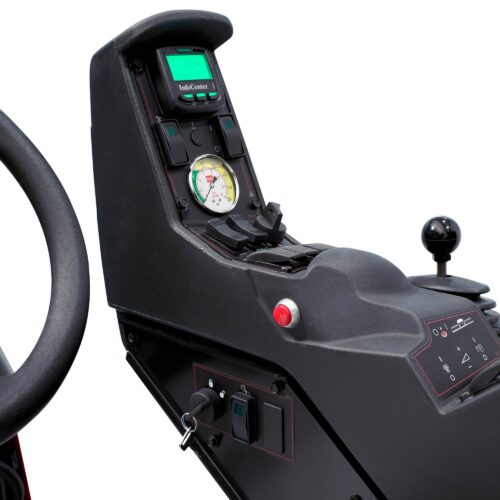

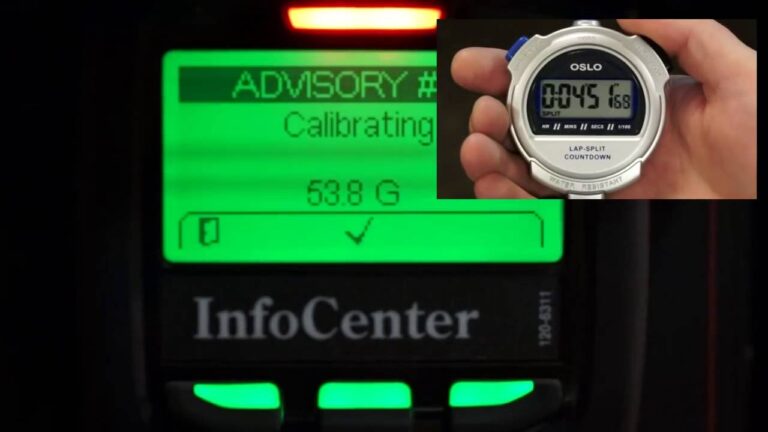

| Gauges/Instrumentation | Multi-function display (InfoCenter™), analog pressure gauge, mechanical fuel gauge.
|
| GeoLink® Capable | Yes |
| Ground Clearance | 5.5" (13.9 cm)
|
| Ground Speed | Forward: 0 - 11.5 mph (0 - 18.5 kph) Reverse: 0 - 2.5 mph (0 - 4 kph)
|
| Height | 97" (2.4 m) [with booms folded in cradles]
|
| Length | 140” (3.55 m) [with booms folded in cradles]
|
| Lights | Rectangular 12-volt, 37.5 watt halogen sealed beam headlights.
|
| Main Frame/Chassis | High-strength, formed steel rear frame channels welded to steel tubular crossmembers and upper/lower steel tubular structure, ROPS standard.
|

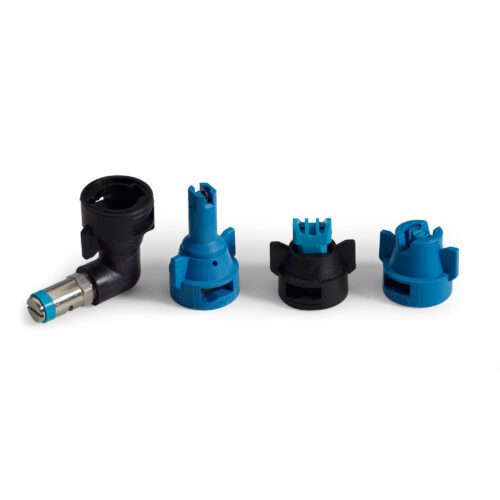

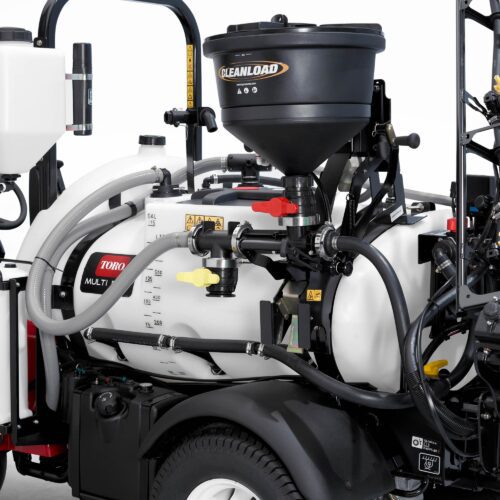

| Optional Accessories | CleanLoad™ eductor, fresh water rinse kit, electric hose reel, Pro Foam™ marking kit, Pro Foam™, Ultra Sonic Boom™ kit, covered boom kit, universal sunshade, hand spray wand kit, air induction turbo twin jet nozzles, contact & systemic nozzles, NozzAlert™, GeoLink® Precision Spray System
|
| Overall Width | 70" (1.77 m) [with booms folded in cradles]
|
| Power Train (Engine Description) | Kohler® CH740 Command Series, twin-cylinder, air-cooled, 4-cycle engine, 25 hp (18.6 kW) gross.
|
| Rated Capacity | 175 U.S. gal. (662.4 L)
|
| Seat | Single, high back cushion seat standard with manual position adjustment and seat belts.
|
| Solution Tank | Elliptical, high-density, impact-resistant polyethylene with large 16" (41 cm) fill well opening; tapered bottom and sump with drain.
|
| Sound Level | 86 dB(A) at operator ear under normal operation
|
| Spray Controls | Spray pump control switch, agitator jet switch, rate switch, individual boom on/off switches, boom actuator switches, indicator lights on pump, agitation & boom switches, throttle lock, app rate lock-out.
|

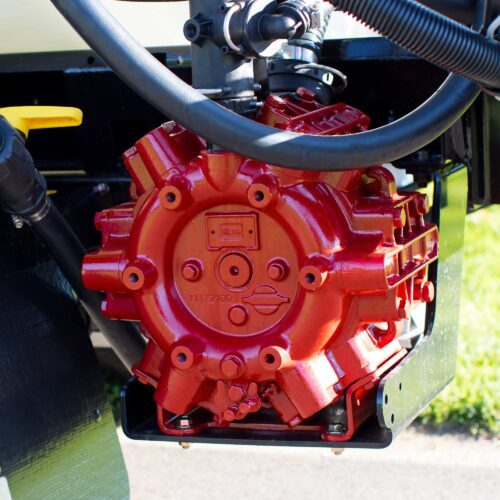

| Spray Pump | Hardi 364/5.5, 6-diaphragm positive displacement w/ 1" (2.5 cm) input shaft; input speed 300~860 rpm, Flow rate of 45 gpm (170.3 lmp) @ 40 psi (860 rpm).
|
| Steering System Description | Fully hydraulic; steering wheel turns, lock to lock: 3.5
|
| Suspension | Front suspension – Double A-Arm with coil over shock; Rear suspension – rigid; rubber tires.
|
| Tires - Front | 20" x 10" - 10", 4-ply, Treadless
|
| Tires - Rear | 24” x 13” - 12”, 6-ply
|
| Traction System | Kanzaki / Tuff Torq 3-speed (forward). 1-speed (reverse), mechanical transaxle with differential lock.
|
| Turning Diameter | 7'-2" (2.2m) to sprayer centerline
|
| Valve Actuators | Eleven nozzle turrets, triple turret-mount, quick-disconnect with diaphragm check valves. Twelve nozzle turrets with optional kit.
|
| Vehicle Controls | Ignition key switch, choke, headlight switch, optional wireless hour meter, speed lock.
|
| Weight | Shipping weight: 2,200 lbs. (997.9 kg) MGVW: 4,000 lbs. (1814 kg)
|
