Agitator | Four side-mounted jet agitation nozzles for full tank agitation.
|
Boom Actuators | Heavy-duty hydraulic lift actuators with nitro-steel plated shafts; 1-3/4" (4.4 cm) Bore x 10.06” (25.6 cm) stroke.
|

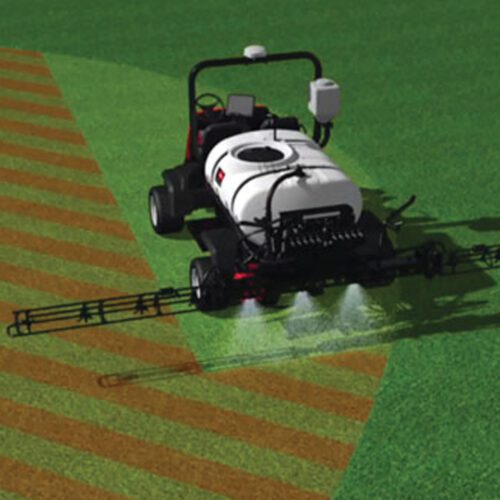

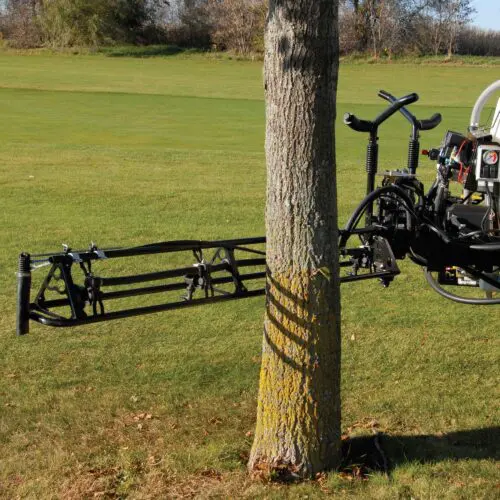

Boom Assembly | 20.5' (6.25 m), 4 nozzles per selection, triangular truss-style open boom. 12 total triple-turret nozzle mounts with diaphragm check valves.
|
Brakes | 2-wheel mechanical cable operated multi disc wet brakes with additional hydrostatic braking through drive train.
|
Cooling System | Mid-mounted 3.3 U.S. qt. (3.1 L) radiator with oil cooler mounted in front.
|
Electrical System | 12-volt battery, 690 cold cranking amps at 0° F (-18° C). 12-volt, 60 Amp alternator. Dash mounted ignition switch.
|
Fuel System | 12 U.S. gal. (45.4 L) polyethylene/nylon low-permeation fuel tank with 1.5" (38 mm) opening on the passenger side for fueling; non-vented fuel cap with electronic fuel gauge on the console, in-tank fuel replacement filter, (unleaded gasoline), evaporative emission system with carbon cannister.
|

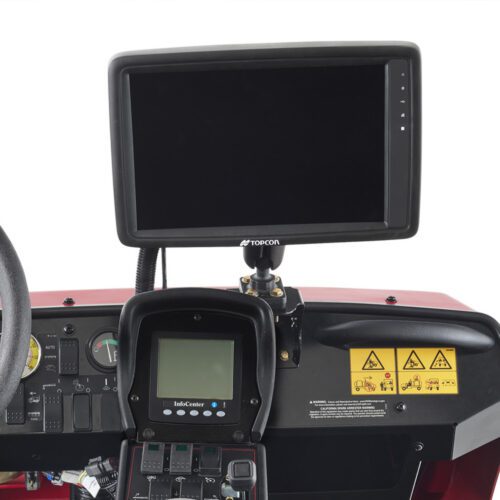

Gauges/Instrumentation | Ignition key switch; analog spray system pressure gauge; fuel gauge; battery voltage lamp; oil pressure warning lamp coolant temperature warning lamp; InfoCenter™ display console.
|

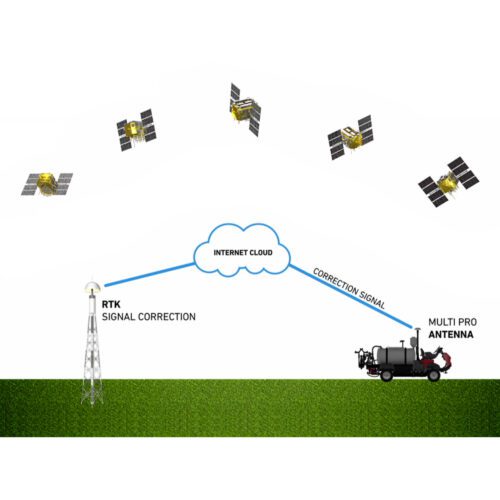

GeoLink® Capable | Yes |
Ground Clearance | 7.25" (18.4 cm)
|
Ground Speed | Forward: 0-10 mph (0-16.1 km/h) Reverse: 0-4 mph (0-6.4 km/h)
|
Height | 83.5" (212 cm) to top of ROPS
|
Length | 154" (391 cm) [with booms forward]
|
Lights | Rectangular 12-volt, 37.5 watt halogen sealed beam headlights.
|
Main Frame/Chassis | Welded high strength steel tubular construction.
|
Optional Accessories | CleanLoad™ eductor, fresh water rinse kit, electric hose reel, Pro Foam™ marking kit, Pro Foam™, Ultra Sonic Boom™ kit, covered boom kit, universal sunshade, hand spray wand kit, air induction turbo twin jet nozzles, contact & systemic nozzles, NozzAlert™, GeoLink® Precision Spray System
|
Overall Width | 88" (224 cm) [with booms forward]
|
Power Train (Engine Description) | Kubota® WG1605, rated output: 50 hp (37.3 kW), 1.6 liter, 4-cylinder liquid-cooled gasoline engine with electronic fuel injection, throttle control, three-way catalytic converter, gear-driven valve train, and a diagnostic port.
|
Rated Capacity | 300 U.S. gal. (1,135.6 L)
|
Seat | Bucket seats with easy tilt forward bracket; removable bolts allow for adjustment for various seat positions; seats are interchangeable from left to right.
|
Solution Tank | Elliptical, high-density, impact-resistant polyethylene with large 16” (41 cm) fill opening.
|
Sound Level | 90 dB(A) at operator ear under normal operation
|
Spray Controls | Spray pump switch; tank agitation switch; individual boom section switches; master boom switch; manual/automatic spray mode switch; boom lift/lower switches; manual application rate control (pressure) switch; ExcelaRate™ automatic spray rate control (via InfoCenter).
|

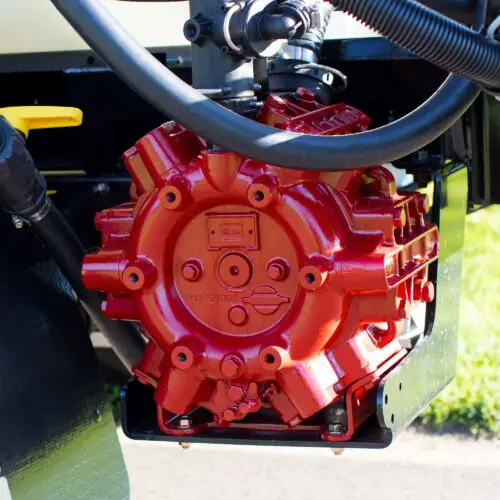

Spray Pump | Hardi 364 / 10.0 6-diaphragm positive displacement; flow rate 45 gpm (170.3 lpm), 220 psi (1500 kpa) maximums.
|
Steering System Description | Fully hydraulic with dedicated power source, 48° steering angle.
|
Suspension | Front: straight axle with twin independent leaf springs and dual shock absorbers. Rear: rigid with high flotation rear tires.
|
Tires - Front | 22" x 12" - 12", 4-ply, No Tread
|
Tires - Rear | 26.5" x 14" - 12", 6-ply
|
Traction System | Hydrostatic system driving double planetary gear reduction rear wheel drives; foot pedal control of forward/reverse ground speed.
|
Turning Diameter | 15'-7" (4.7 m) front tire inside 26'-7" (8.1 m) front tire outside
|

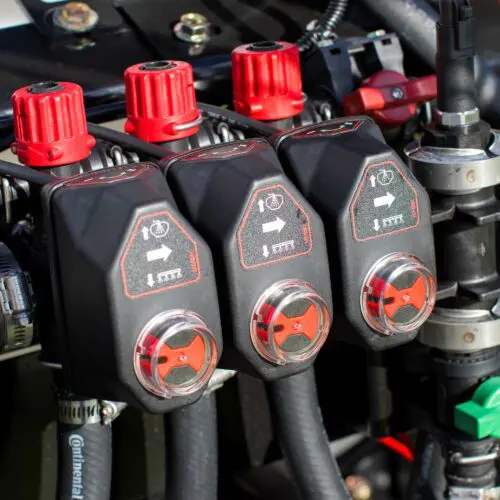

Valve Actuators | 12 total triple-turret nozzle mounts with diaphragm check valves.
|
Vehicle Controls | Throttle control; spray pump switch; tank agitation switch; individual boom section switches; master boom switch; speed-lock switch; manual/automatic spray mode switch; boom lift/lower switches; manual application rate control (pressure) switch; USB port; 12V power socket; ExcelaRate™ automatic spray rate control (via InfoCenter).
|
Weight | Drive-on weight: 2,882 lbs. (1,307 kg), Shipping weight: 2,882 lbs. (1,307 kg), Empty vehicle: 2,882 lbs. (1,307 kg), Full w/ Operator: 5,692 lbs. (2,582 kg), MGVW: 6,692 lbs. (3,035 kg)
|
