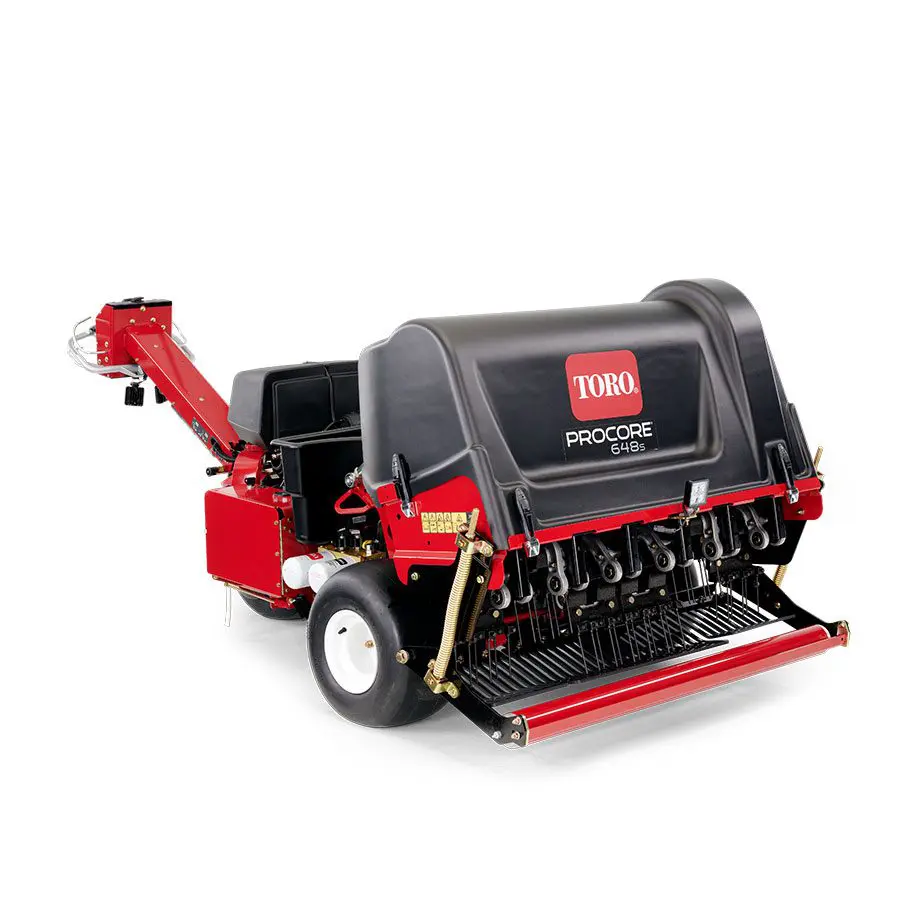

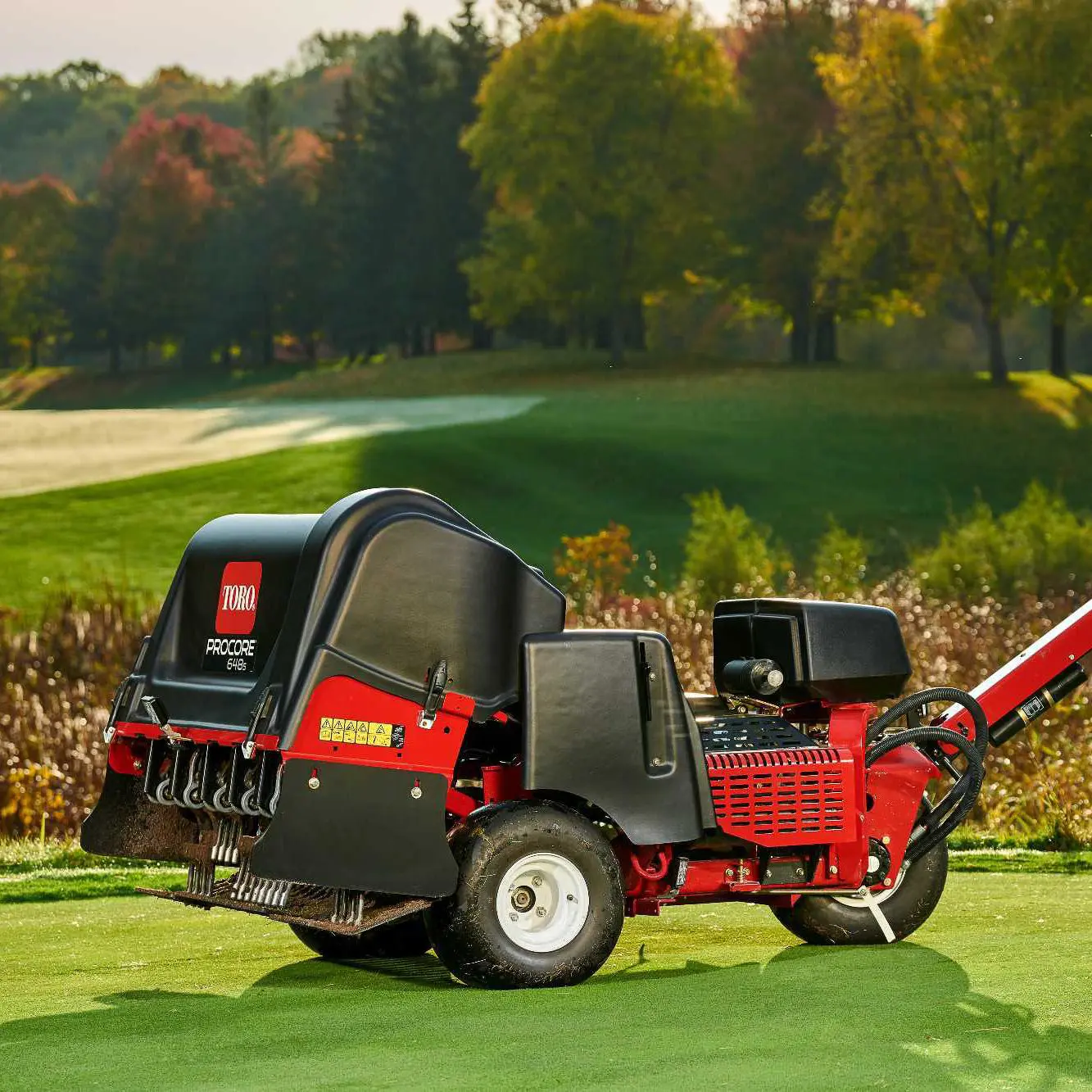

The ProCore 648s builds on the tremendous legacy of the ProCore 648 by incorporating proven technology and even more innovative features while preserving the time tested design elements that changed the way you aerate. Revised controls improve ergonomics and allow single handed operation. Hole spacing and true tine depth are now set and saved in the InfoCenter. The onboard controller is continuously monitoring key operating parameters to improve after aeration turf condition and allow the operator to easily target coring head drop and raise. A tighter turning radius with reduced wheel scrubbing and the ability to easily increase speed during turns increases productivity. Proven reliability, improved performance and exciting innovation – that’s what makes the ProCore 648s the new superior choice.
All ProCore 648 accessories will work on ProCore 648s.
TrueCore™ sensing system automatically maintains tine depth on the fly to match the ground undulations providing consistent coring depth of up to 4″ (10.2 cm).
Allows operators to easily target where they want the coring head to drop or raise, making starting and ending passes or jumping up and over an in-ground obstacle, like an irrigation head, much easier.
Smart technology enhancement utilizes an electronically controlled hydrostatic 3-wheel drive which maintains more consistent hole spacing on sloping terrain.
The ProCore 648s builds on the tremendous legacy of the ProCore 648 by incorporating proven technology and even more innovative features while preserving the time...

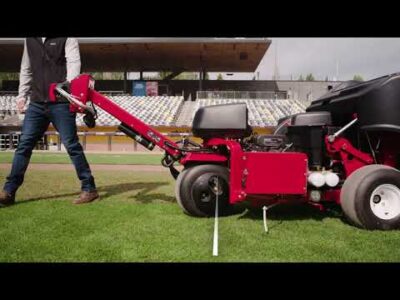

Toro® ProCore® 648s – Delayed Drop and Raise
Video clips demonstrating the use and operation of the delayed drop and raise feature on ProCore 648s.

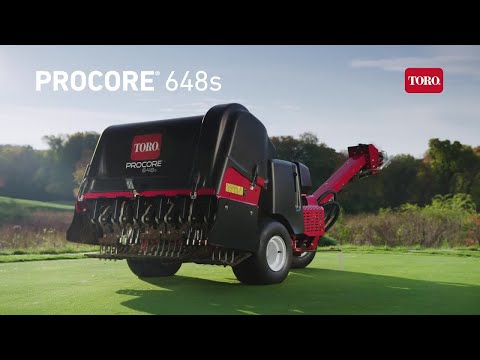

Toro® ProCore® 648s Short
The ProCore 648s builds on the tremendous legacy of the ProCore 648 by incorporating proven technology and even more innovative features while preserving the time-tested...

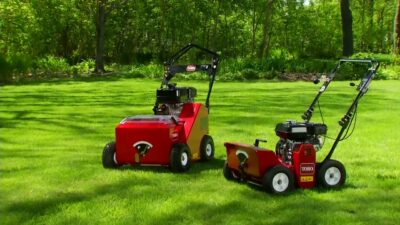

Toro Turf Renovation Line Overview
From aerators and seeders to dethatchers, Toro has you covered with a durable, easy to use line of hydraulic and mechanical turf renovation products to...

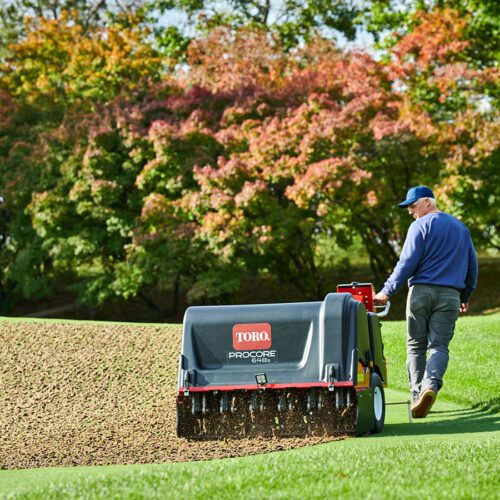

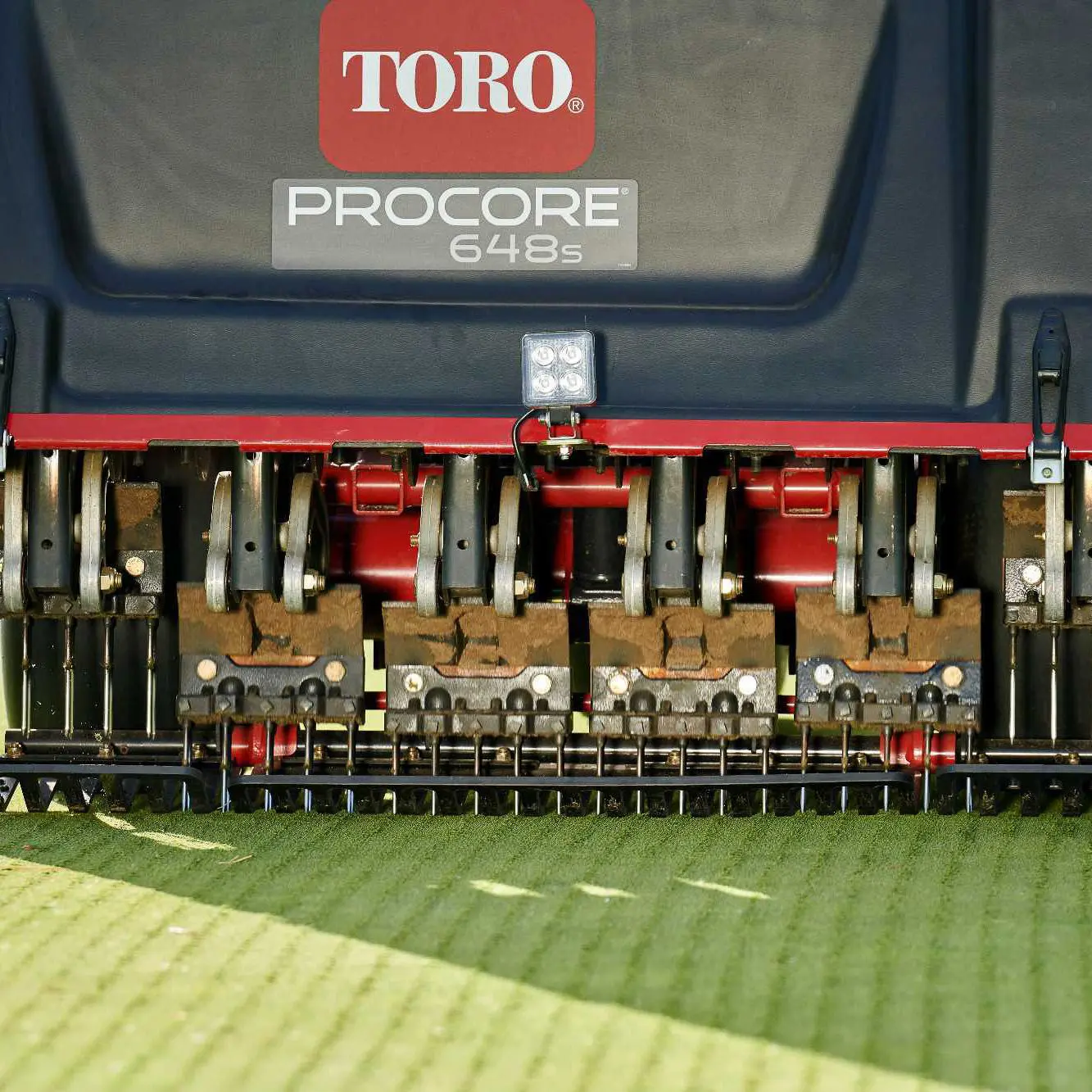

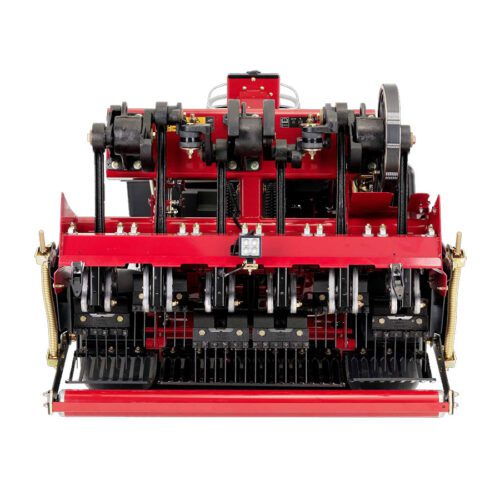

Smooth, Quiet, Powerful
To give the ProCore 648s its uncommonly smooth operation, the action of the tine arms are modeled after a six-cylinder car engine. The arms work in pairs to counterbalance the coring action. This precise configuration virtually eliminates hopping, rocking and unnecessary vibration.

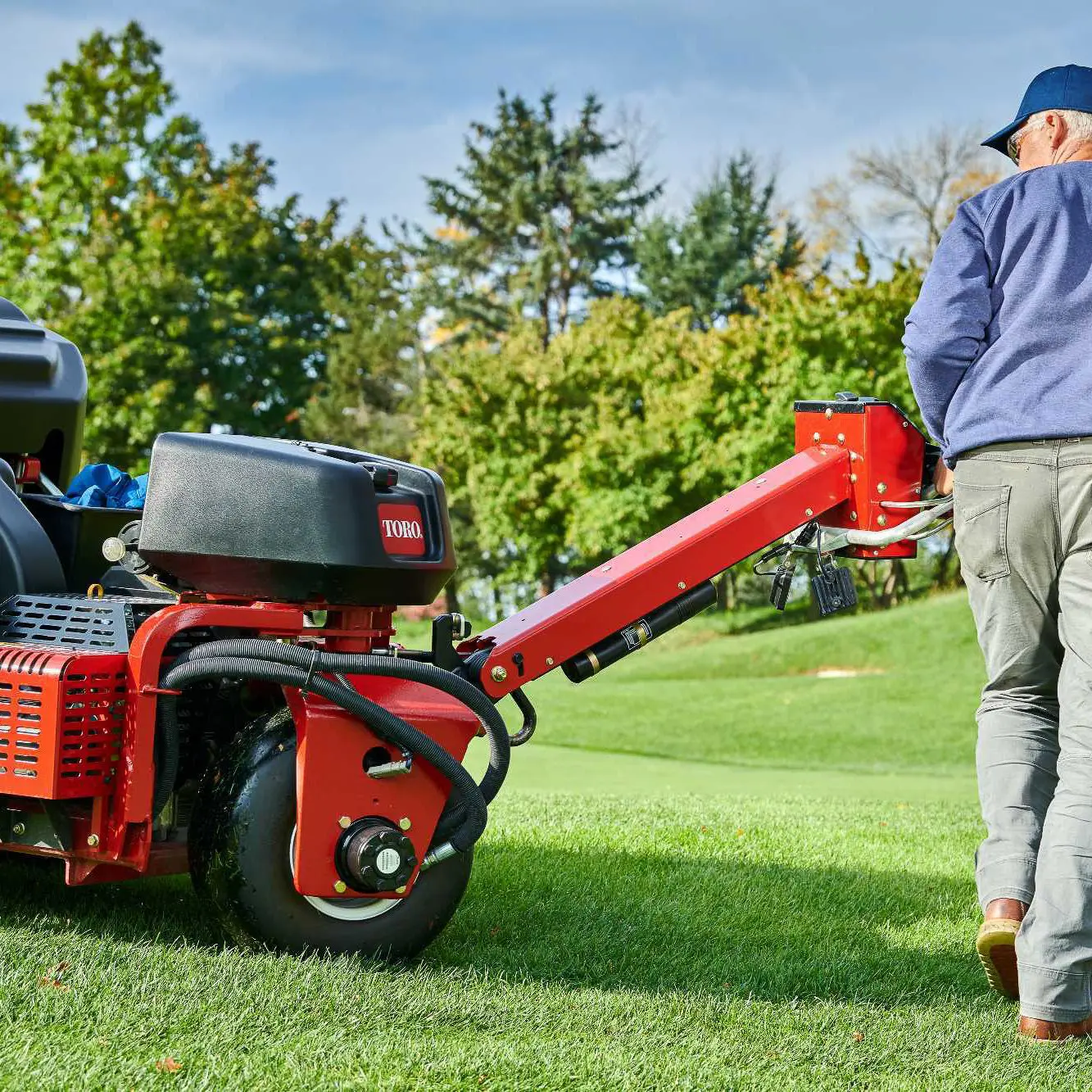

Electronically Controlled Drive
This smart technology enhancement utilizes an electronically controlled hydrostatic 3-wheel drive which maintains more consistent hole spacing on sloping terrain. It also essentially eliminates front wheel scrub in turns while providing a tighter turning radius. Operators can easily increase speed during turns, improving efficiency.

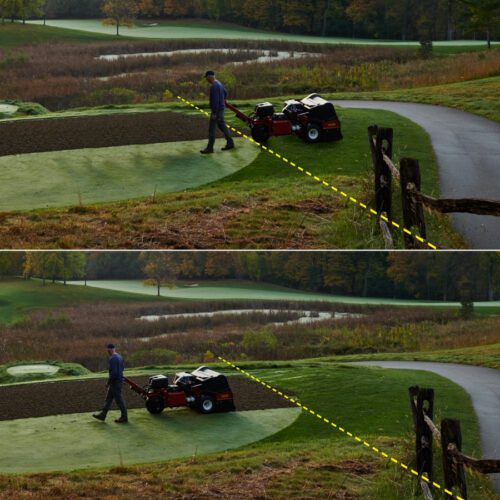

Delayed Mode
When operating in Delayed Mode, the onboard controller continuously monitors key operational parameters, reducing grass tufting when coring head drops to start a pass. It also allows operators to easily target where they want the coring head to drop or raise, making starting and ending passes or jumping up and over an in-ground obstacle, like an irrigation head, much easier.

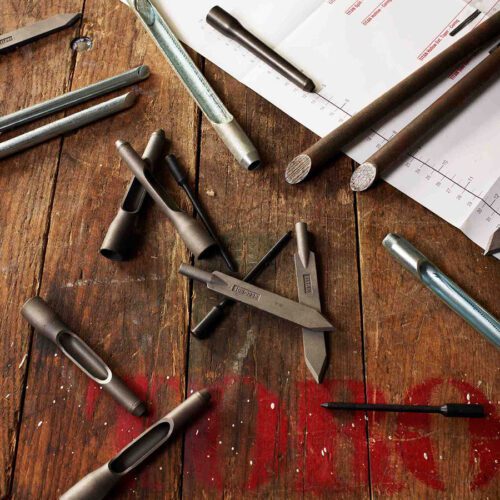

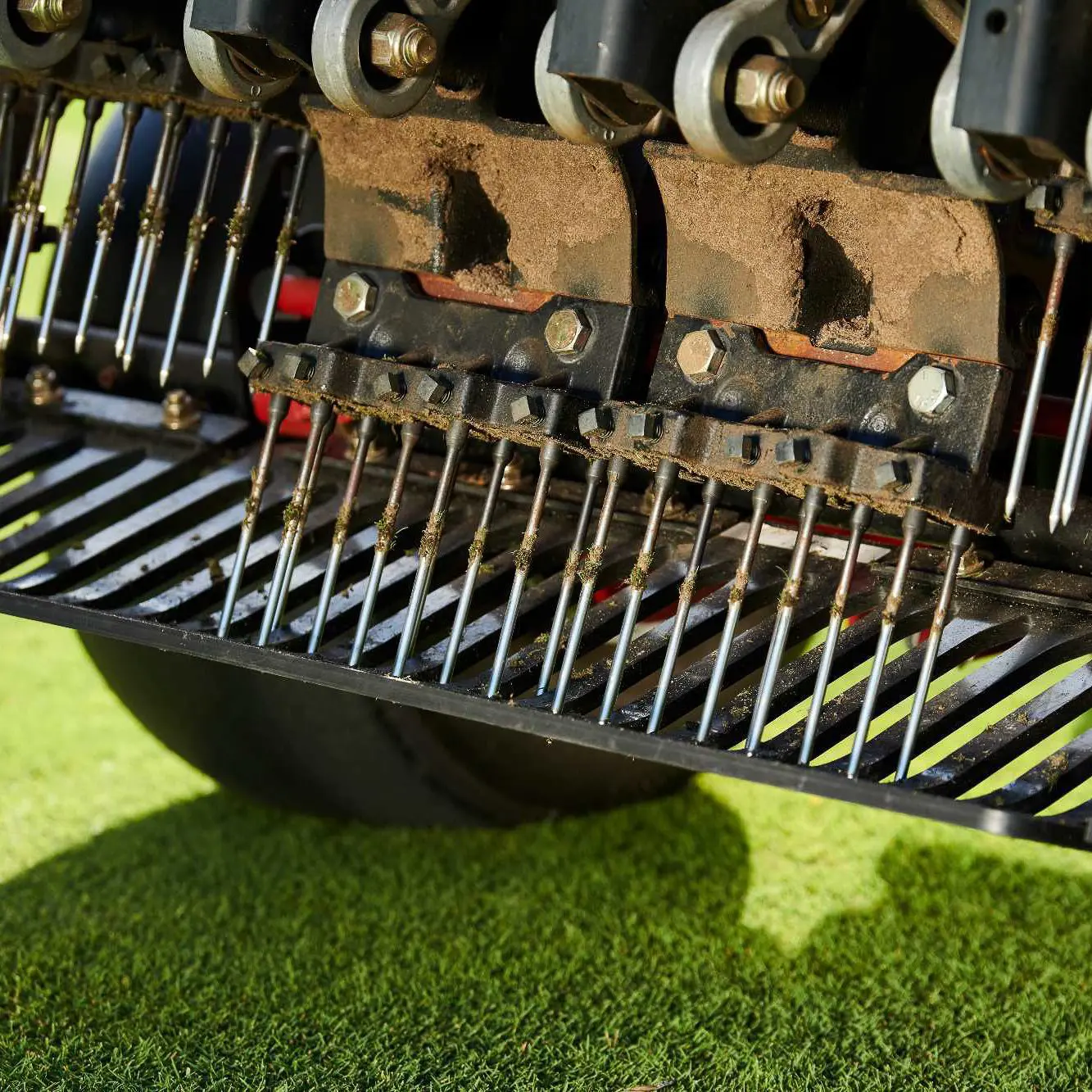

Toro Titan Tines
View the Toro Titan Tines Guide & Catalog

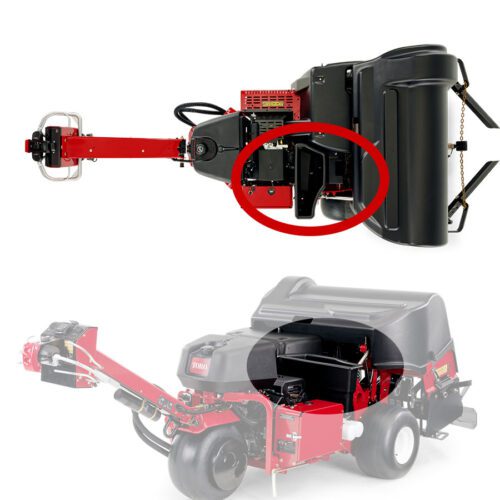

Onboard Storage
Bring a hot beverage, field notes, a sweatshirt, or carry some extra tines, the onboard storage has plenty of room.
Compatibility
All ProCore 648 accessories will work on ProCore 648s.

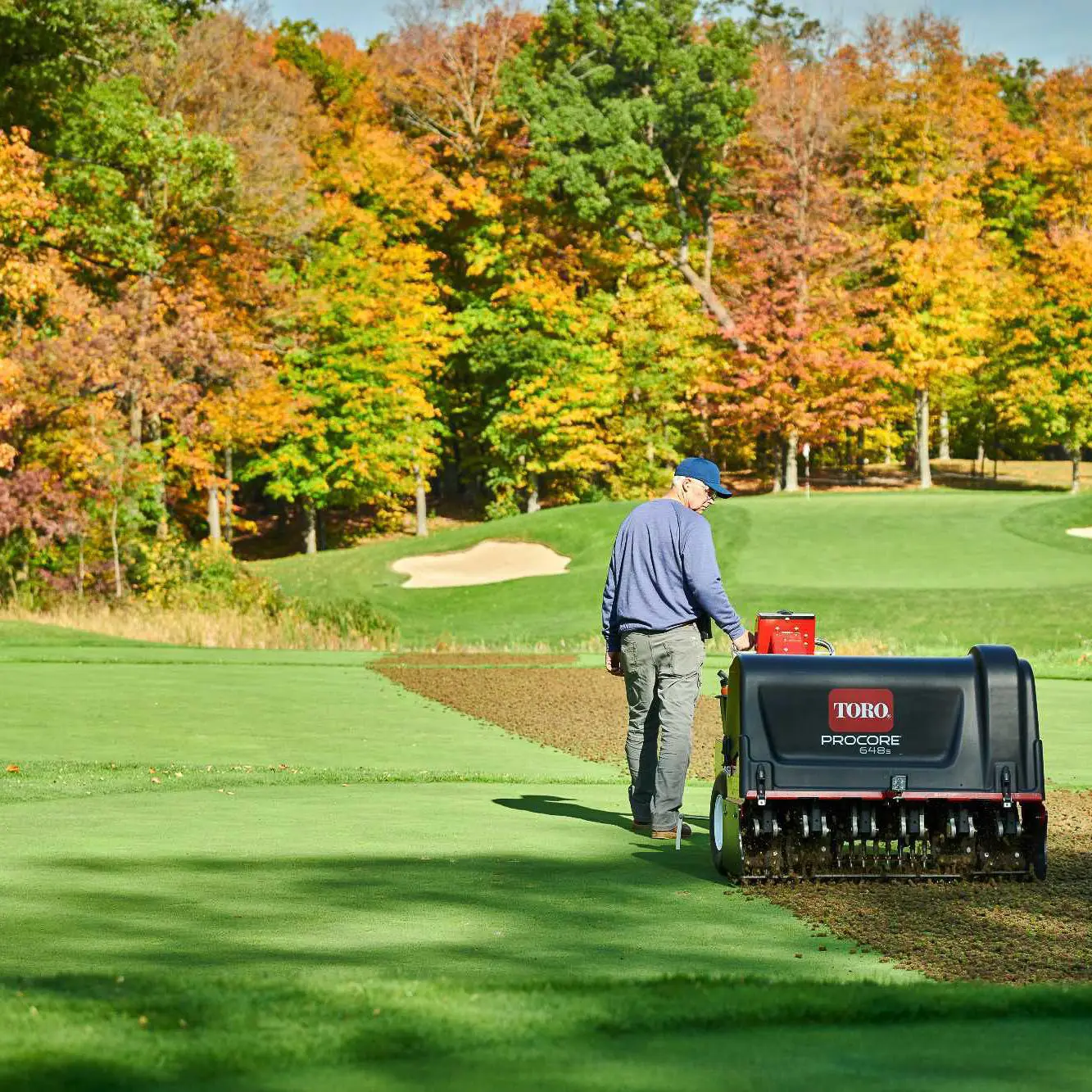

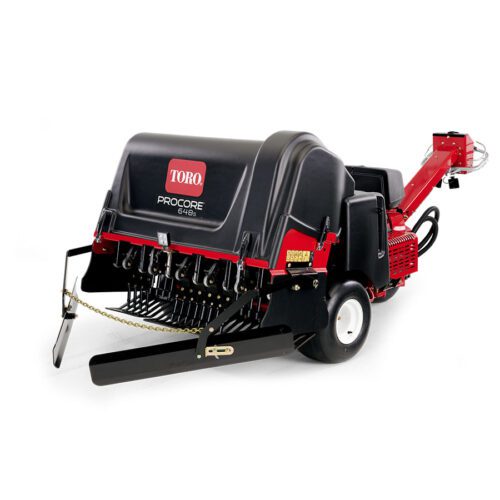

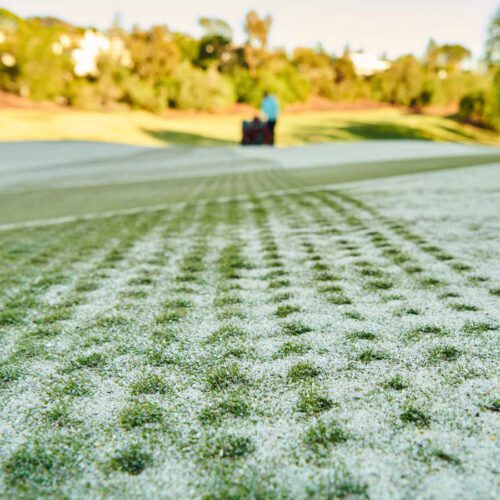

Deep, High Quality Holes
RotaLink™ geometry allows the tines to enter and exit the ground cleanly leaving a high quality result and a quick return to play.

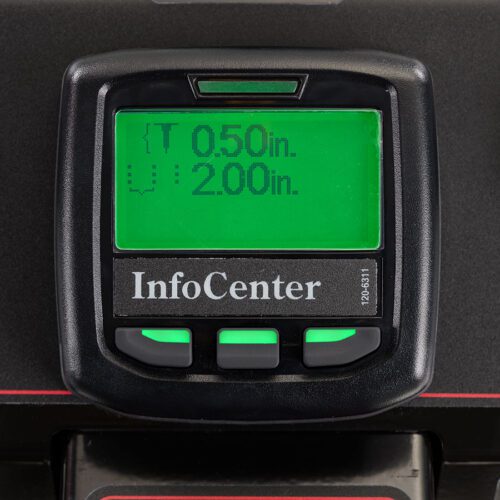

InfoCenter Smart Settings
Set and Save precise hole depth and spacing to ensure consistent, condition-driven aerification that yields outstanding results. This controller allows much wider range of adjustment in 0.25” (5 mm) increments, ensuring just the right amount of aeration to match the needs of the turf.

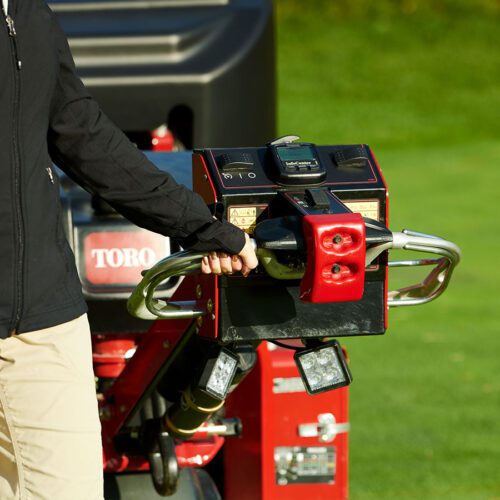

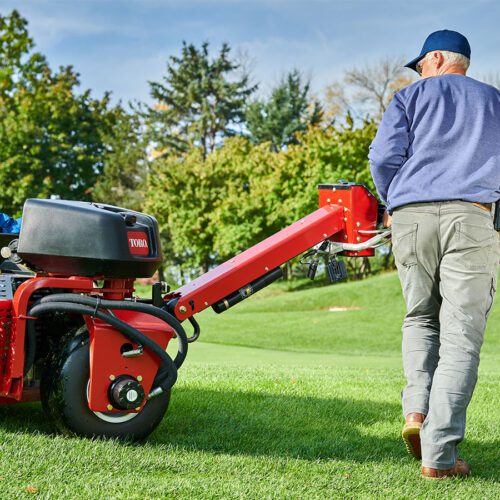

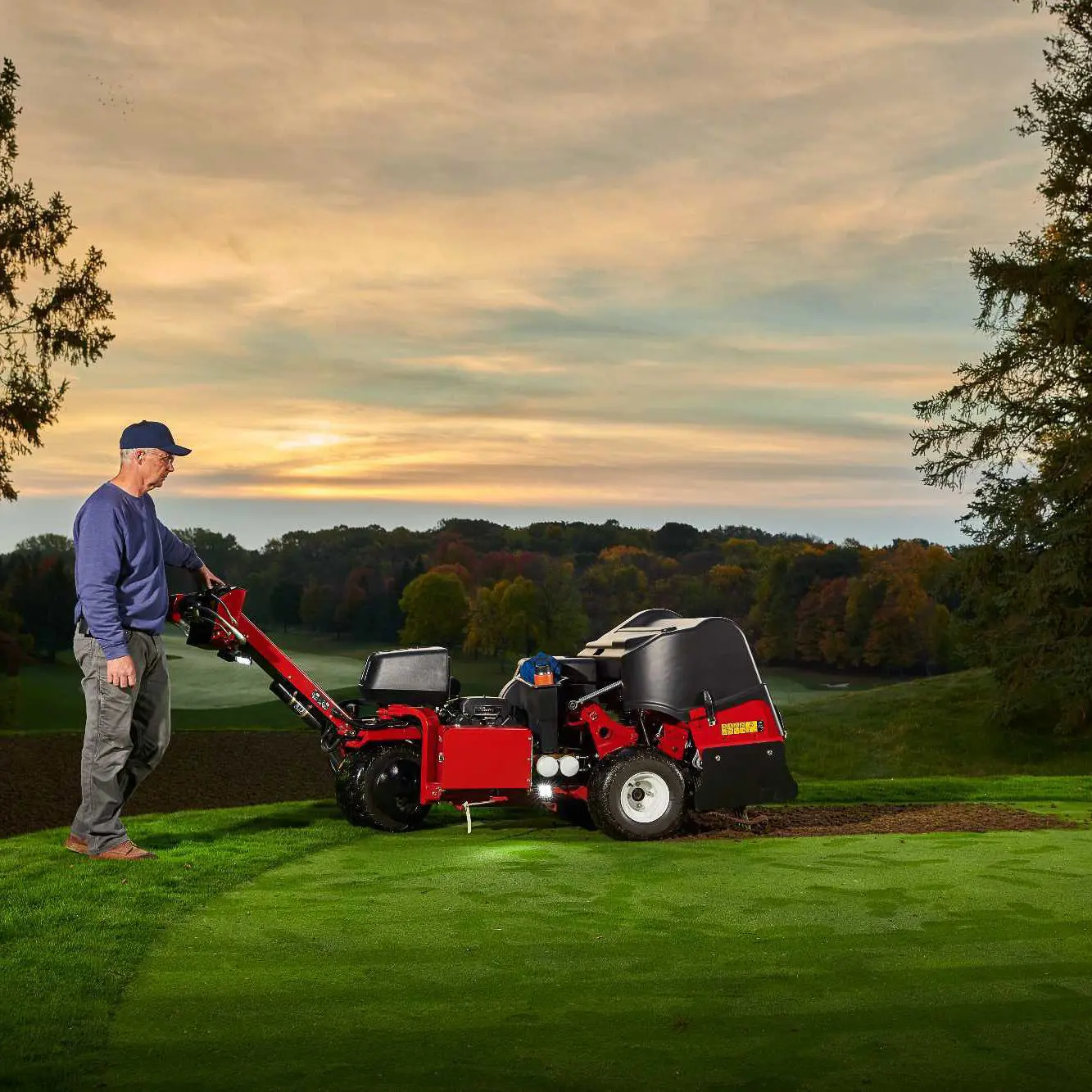

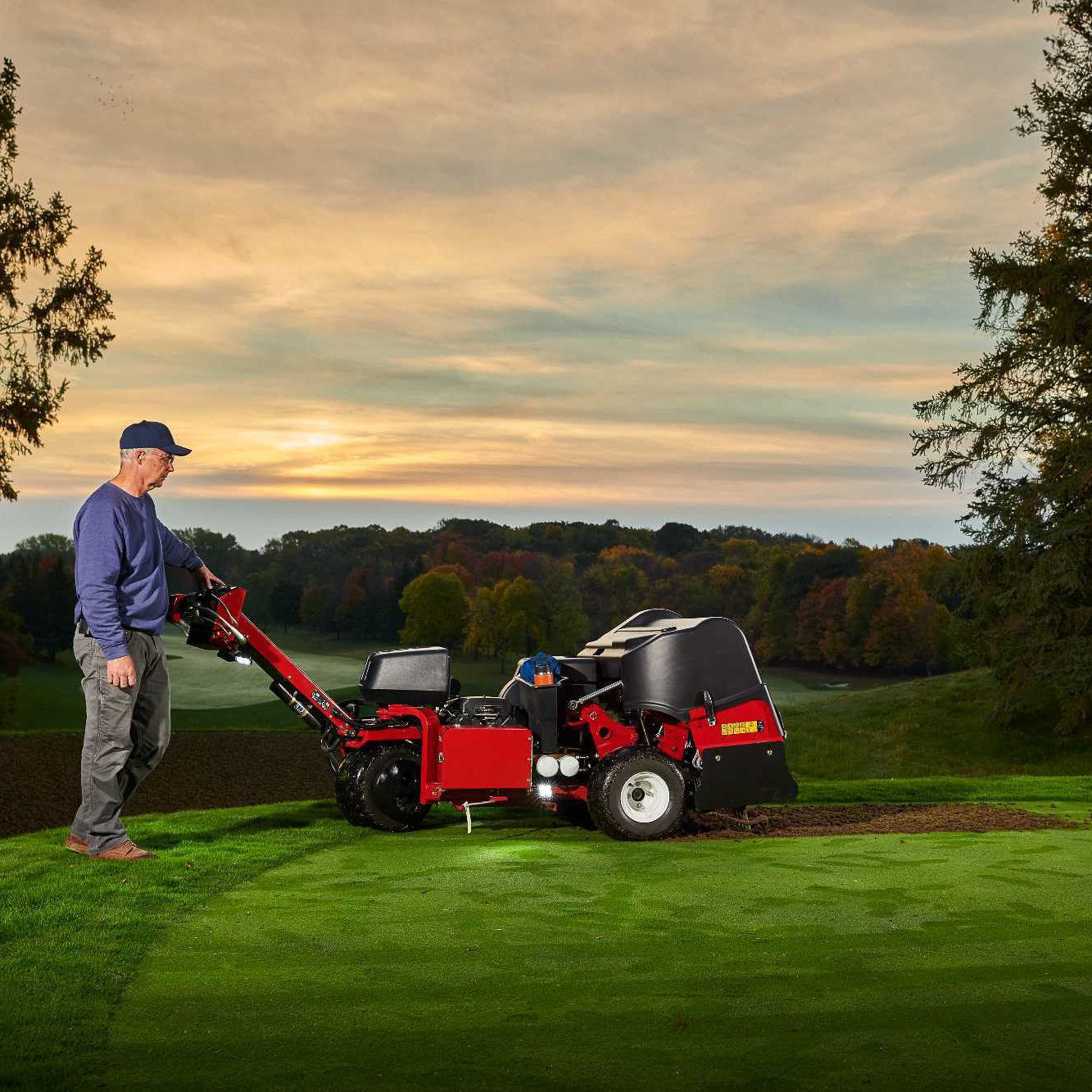

Ergonomics
Completely redesigned operator handle with intuitive controls that allows simple one hand operation from either side of the machine, allowing operators to walk and keep focus forward with less fatigue. The floating handle also allows any height person to operate the machine comfortably.
TrueCore™ Ground Following
TrueCore™ sensing system automatically maintains tine depth on the fly to match the ground undulations providing consistent coring depth of up to 4" (10.2 cm).

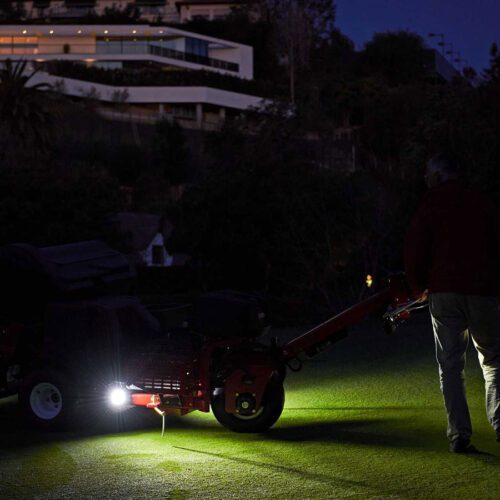

LED Light Kit
To get an early start or extend the work day, illuminate the path with the accessory five LED light kit.
Specifications
Aeration Type
Shallow
Brakes
Hydrostatic
Construction
Welded steel frame with cast crank and arm assembly.
Controls
Redundant operator presence bails, aeration start/stop bails and traction speed thumb wheels on handle. Tine length calibration, tine depth and forward hole spacing set and saved in InfoCenter. Bump stop, delayed or immediate drop switch, cruise control on/set/off switch, aerate or transport switch and optional LED light kit switch located on operator console. Ignition, tachometer on side console. Throttle and choke on engine.
Series-Parallel, closed loop, hydrostatic drive. 3WD, except it automatically switches to 2WD while in aeration mode and traveling in forward direction with coring head raised allowing a tighter turning radius. Electronically controlled variable displacement piston type pump. High-torque, low-speed wheel motor drive.
